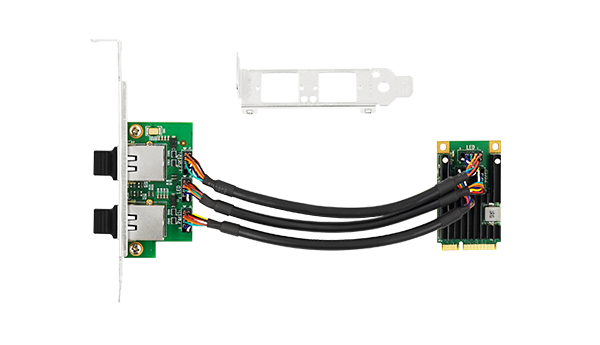

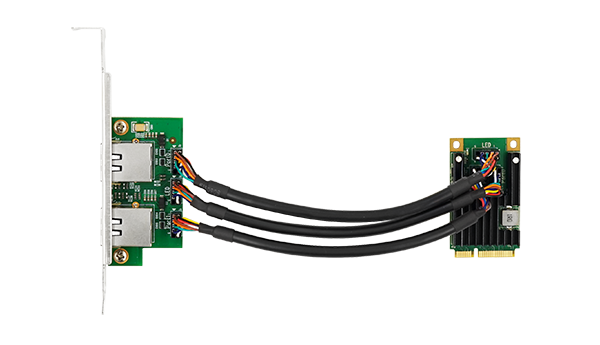

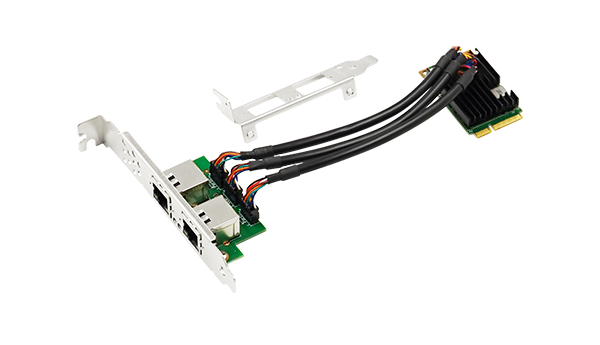

Mini PCIe Dual-port Gigabit copper Ethernet card (Intel I350)
LRES2217PT is a Mini PCIe dual port gigabit ethernet network adapter developed by Linkreal Co., Ltd. based on Intel master control solution.
The adapter adopts Mini PCI-E full-height slot design, which is designed to be used in industrial computers, single board computers and other industrial equipment with Mini PCIe interface slots. It can greatly solve the problem of compact device space. The ethernet adapter supports 10/100/1000Mbps connection rate to automatically adapt to the existing ethernet network.
This ethernet adapter can be widely used in industrial computer, embedded computer, single board computer, digital multimedia and other network equipment, can achieve Windows, Linux and other systems support.
Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (Intel I350): LRES2203PF-2SFP
Complete technical details for integration and deployment planning.
| Bus Type | Mini PCIe |
|---|---|
| Data rate | 10/100/1000MbE |
| Connector | 2*8-Pin RJ45 |
| Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| PXE | No |
| DPDK | Yes |
| Jumbo Frames | Yes |
| iSCSI | No |
| Jumbo Frames | Yes |
| WoL | No |
| FCoE | No |
