Mini PCIe Dual-port 1G Ethernet Network Adapter(Mucse Chip Based)

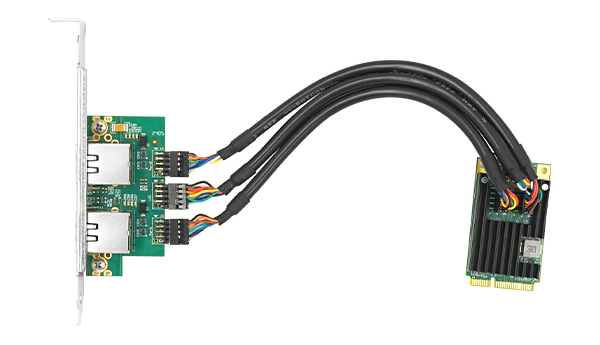

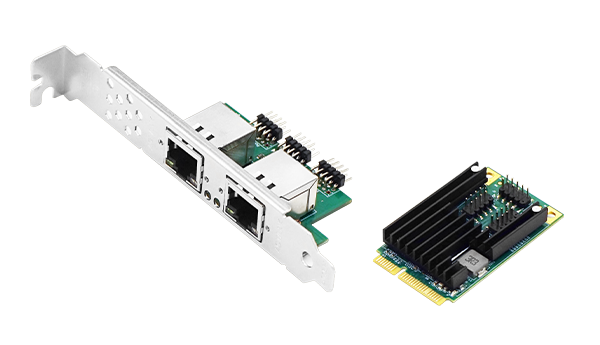

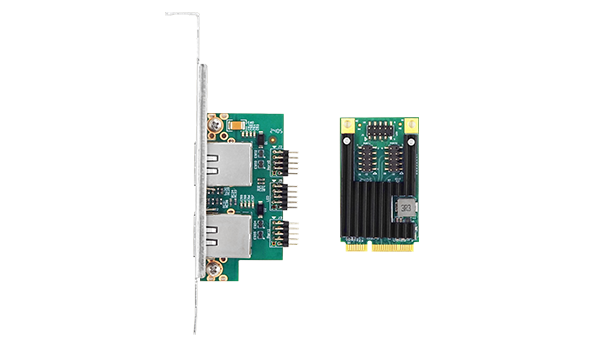

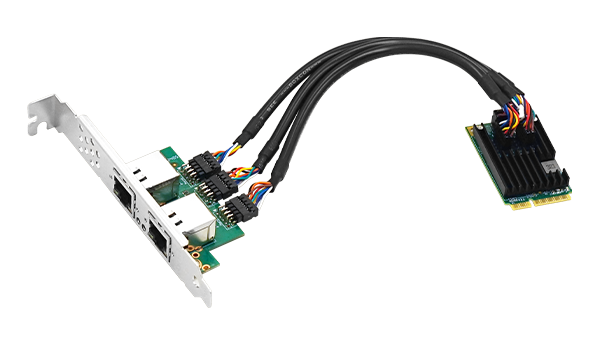

LRES2222PTI is a Mini PCIe Dual-port 1G Ethernet Network Adapter based on the Mucse RNP N500L-AM2 master control solution of Linkreal Co., Ltd. This adapter card adopts a Mini PCIe full-height slot design, which is perfectly adapted to industrial equipment with Mini PCIe interface slots such as industrial computers and single-board computers, effectively solving the problem of compact equipment space. At the same time, it is compatible with multiple operating systems such as Kylin and Linux, fully demonstrating its high compatibility and flexibility. In short, LRES2222PT is a network adapter that integrates high performance, high reliability, and high flexibility. Whether in a complex network environment or in a space-constrained industrial environment, it can meet users' needs for efficient and stable network connections.
Complete technical details for integration and deployment planning.
| Fiber Type | CAT 5e |
|---|---|
| CAT 6 | 50m：1G |
| CAT 6e | 50m：1G 100m：1G |
| CAT 7 | 50m：1G 100m：1G |
| ESD | Contact discharge |
|---|---|
| Operating System Support | * Deepin 20 /20.6 /20.9* Galaxy Unicorn V10* NeoKylin 7.6* RHEL/CentOS 7.6 /7.9 /8.3/8.4 * Ubuntu 16.04.3 /18.04.5* Ubuntu 20.04.1 /22.04.2* ZTE New Fulcrum 3.2.2* Tongxin UOS 20 |
| 10Mbps | Connection Status |
|---|---|
| Transfer status | Green Blink |
| 100Mbps | Connection Status |
| Transfer status | Green Link + Green Blink |
| 1Gbps | Connection Status |
| Transfer status | Green Blink + Orange Link |
| Operating Temperature | -40℃ to 85℃ (-40℉ to 185℉) |
| Storage Temperature | -40℃ to 85℃ (-40℉ to 185℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
| PCB size(unit:mm) | 30*50.95*1+64*31.6*1.6 |
| Package size (unit: mm) | 222*147*28 |
| Baffle specifications | Full bracket(installed) and Low Profile |

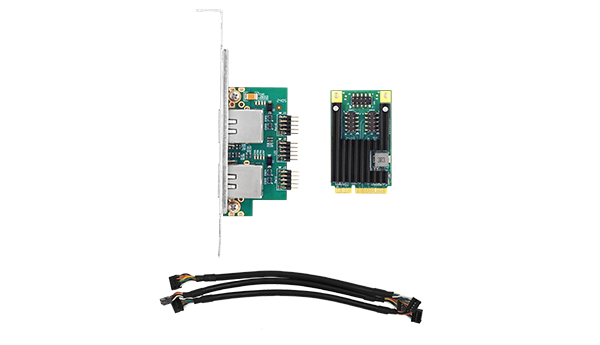

| Network card | *1 |
| adapter board | *1 |
| connecting cable | *1 |
| Product warranty card | *1 |
| Packing | Carton and Static bag |
