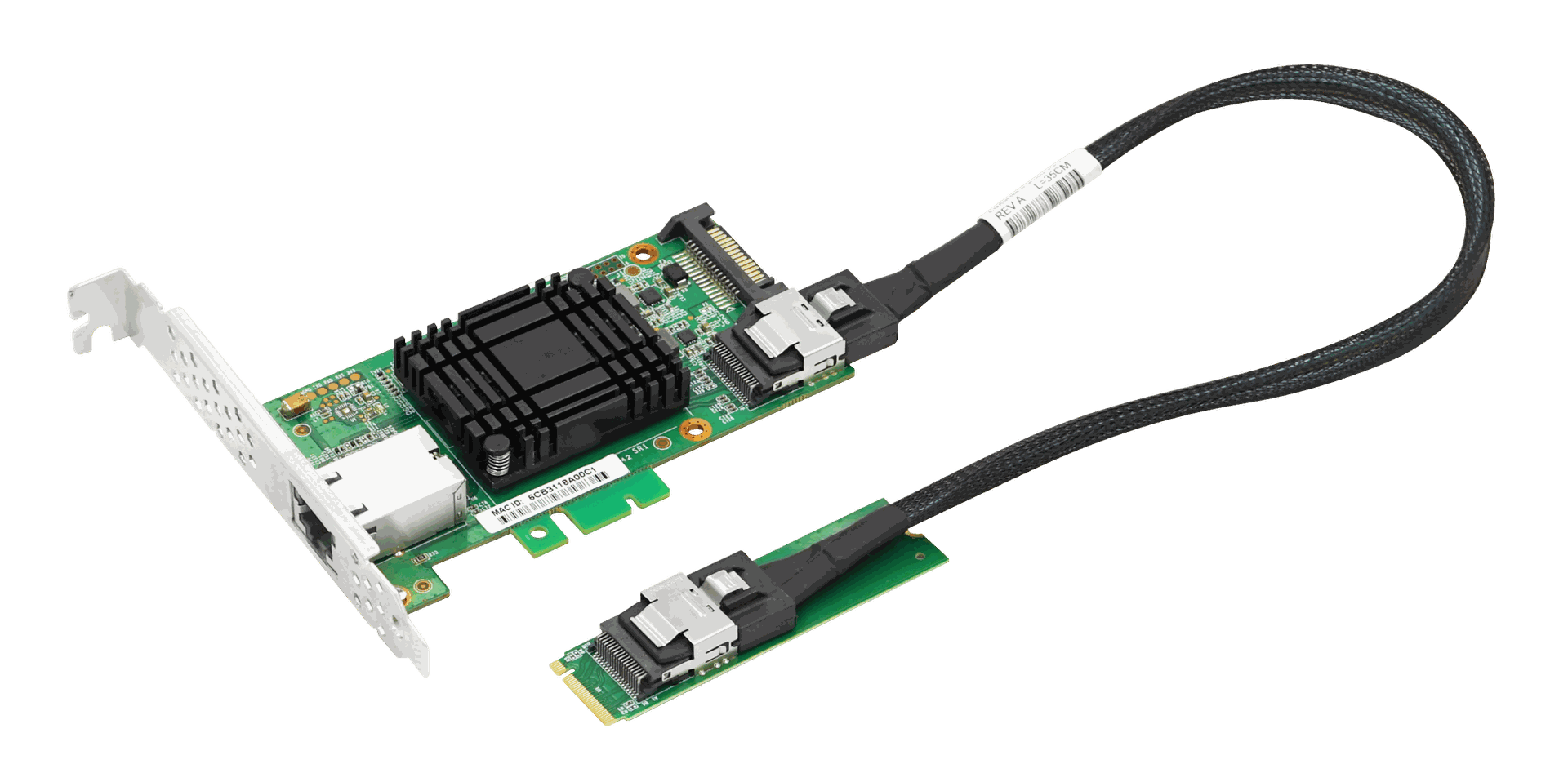

M.2 form factor 10G single-port Ethernet adapter with RJ45 interface for space-constrained industrial systems.
LR-LINK presents the LRES2330PT-RJ45, a high-performance 10G Ethernet adapter designed specifically for space-constrained applications. Built on the robust Marvell AQC113 chipset, this adapter utilizes an M.2 interface to provide flexible network expansion solutions. By connecting via M.2 rather than a traditional PCIe slot, it preserves critical expansion capabilities for other essential components in industrial PCs and embedded systems.
This single-port network card supports multiple link speeds including 10G, 5G, 2.5G, 1G, 100M, and 10M, ensuring backward compatibility and optimal performance across various network infrastructures. The adapter includes a SATA power socket for stable operation and comes with necessary cables and brackets (Low Profile & Full Height) for easy installation. It supports IEEE 802.3bz standards and Energy Efficient Ethernet (EEE) for reduced power consumption.
Ideal for industrial automation, remote monitoring, and production line data transmission, the LRES2330PT-RJ45 delivers the reliability and real-time accuracy required in demanding environments. With support for PXE, UEFI, Jumbo Frames, and IEEE 1588 PTP, it meets the strict requirements of modern industrial networks. LR-LINK ensures broad OS compatibility, supporting Windows, Linux distributions, and various domestic Chinese operating systems.
M.2 interface design saves valuable PCIe slots for other critical hardware expansions.
Supports up to 10Gbps link speed with backward compatibility for 2.5G and 1G networks.
Robust performance for industrial automation with wide temperature range and stability.
Converts M.2 bus to standard RJ45 port for easy copper cable integration.
Supports IEEE 1588 PTP protocol for precise time synchronization in industrial apps.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Model | LRES2330PT-RJ45 |
|---|---|
| Controller | Marvell AQC113 |
| Bus Type | PCIe v3.0 (8GT/s) x4; M.2 Interface |
| Connectors | One RJ45 |
| Cable Medium | Copper |
| Link Speed | 10G/5G/2.5G/1G/100M/10M |
| Power Supply | 15Pin SATA power socket |
| PCB Size | 64.43*115*1.6 mm |
|---|---|
| Bracket Height | Low Profile & Full Height |
| Package Size | 179*150*30 mm |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum: 90% non-condensing at 35°C |
| Certification | FCC, CE, RoHS |
|---|
| Protocol Support | |
|---|---|
| System Support | |
| PXE | Yes |
| 1588 PTP | Yes |
| WoL | No |
| UEFI | Yes |
| Jumbo Frames | Yes |
