PCIe x4 quad-port Gigabit copper server adapter based on Intel I210 controller for reliable network connectivity.

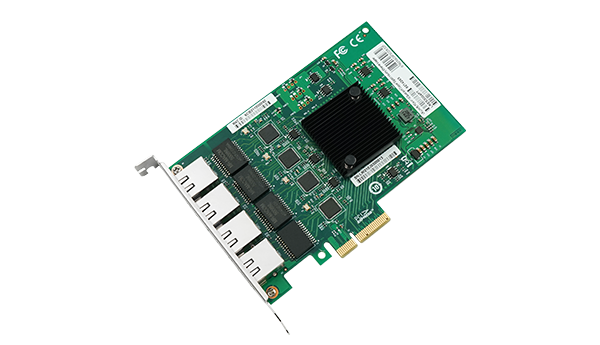

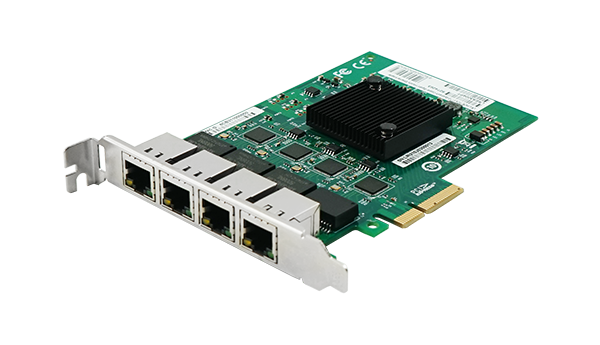

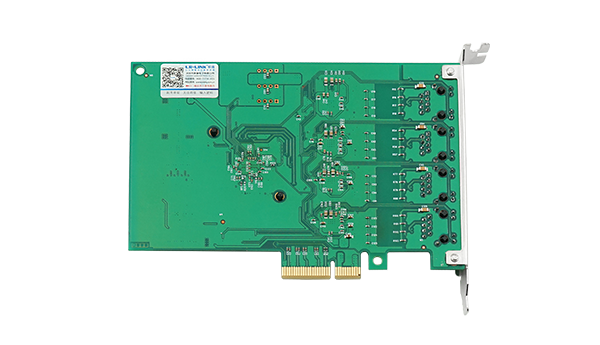

LR-LINK presents the LRES3004PT, a specialized PCI Express x4 quad-port Gigabit Ethernet server adapter designed for efficient and reliable network connectivity. Built upon the proven Intel I210 controller solution, this adapter delivers high-performance network data transmission while maintaining a compact form factor that fits seamlessly into standard server chassis.
Equipped with four 1GBASE-T ports, the LRES3004PT supports adaptive link speeds of 10/100/1000Mbps, allowing for flexible deployment across various network infrastructures. The adapter utilizes advanced Ethernet power management technologies, including Energy-Efficient Ethernet (EEE) and DMA merging, to significantly reduce power consumption without compromising throughput. Additionally, it features four transmit and receive queues per port along with error correction memory protection to enhance data reliability.
Ideal for data centers, cloud computing environments, and industrial automation applications, this server adapter offers broad operating system support including Windows Server, Linux distributions, and VMware ESXi. Its compatibility with PCIe x8 and x16 slots ensures easy integration, while its wide operating temperature range (-40°C to +85°C) makes it suitable for harsh industrial conditions. LR-LINK's design minimizes customer deployment costs and simplifies migration to Gigabit Ethernet networks.
Four independent Gigabit RJ45 ports for high-density network connections.
Reliable performance powered by the industry-standard Intel I210 chipset.
Supports EEE and DMA merging to reduce power consumption and heat.
Wide operating temperature range (-40°C to +85°C) for harsh environments.
Features error correction memory protection and multiple TX/RX queues.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.1 x4 (compatible with x8, x16) |
|---|---|
| Connector | 4x 8-Pin RJ45 |
| Data Rates | 10/100/1000 Mbps |
| Protocol Support | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q VLAN |
| Controller | Intel I210 |
|---|---|
| Architecture | Integrated MAC and PHY |
| Energy Efficient Ethernet | Yes (IEEE 802.3az) |
|---|---|
| Jumbo Frames | Yes |
| DPDK Support | Yes |
| PXE Support | Yes |
| iSCSI | No |
| WoL | No |
| FCoE | No |
| Size | 147 x 120 x 21 mm |
|---|---|
| Weight | 109 g |
| Baffle Height | Full height |
| Operating Temperature | -40°C to +85°C |
|---|---|
| Storage Temperature | -55°C to +105°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| Power Consumption | 6.2W |
|---|
| Windows | 7/8/8.1/10, Server 2008R2/2012R2/2016R2/2019/2019R2 |
|---|---|
| Linux | Stable Kernel 2.6.32.x/3.x/4.x+, CentOS/RHEL 6.x/7.x+, Ubuntu 14.x+ |
| VMware | ESX/ESXi 4.x/5.x/6.x+ |
