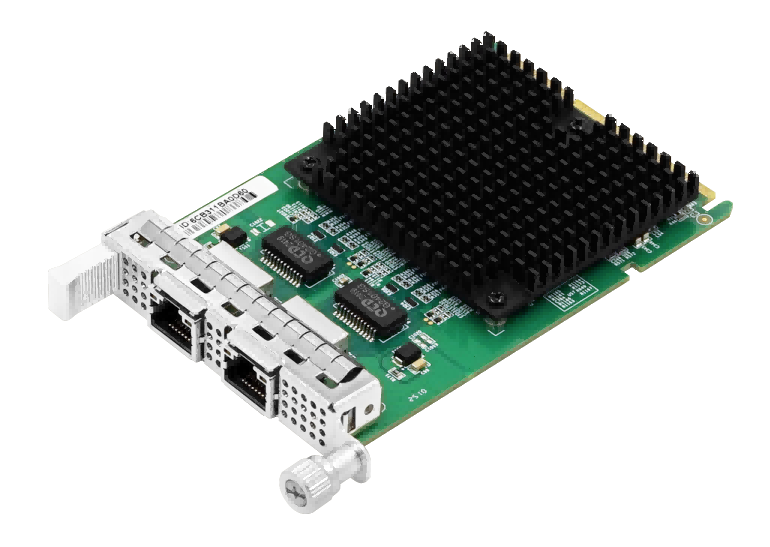

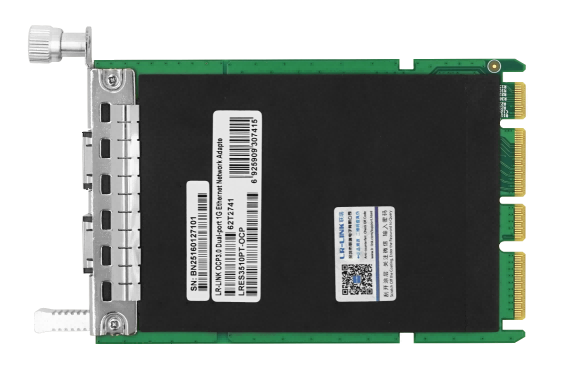

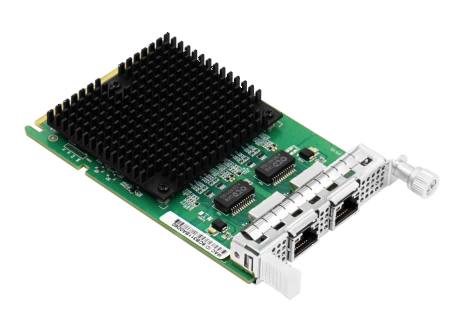

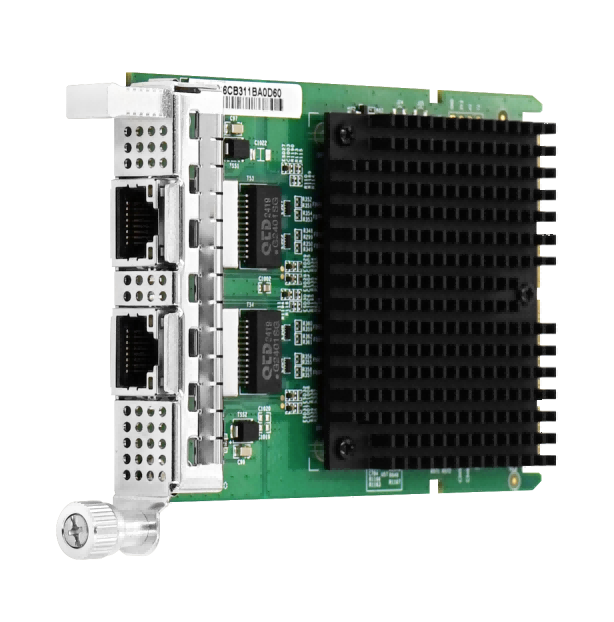

OCP3.0 Dual-port 1G Ethernet Network Adapter
LRES3510PT-OCP is a PCIe2 .0 x4 dual-port Gigabit Ethernet network adapter developed by Linkreal Co ., Ltd. based on the Netxun WX1860A2 master control solution . The adapter is backward compatible with PCIe v1 .0 and supports 100Mbps and 1000Mbpsb network adaptive functions . It can flexibly adapt to network environments with different rates and ensure stable connections under various network conditions .
LRES3510PT-OCP supports RSS, supports up to 8 queues per port, supports QoS and TSO to reduce CPU burden and improve network performance . Supports network packet verification and unloading. It also supports SR-IOV (4PF/32VF), PXE/ UEFI, WoL, NCSI, 1588PTP, etc .
LRES3510PT-OCP adopts domestic solutions to break foreign monopoly, ensure information security, and provide strong protection for national information infrastructure, key industry network systems, and personal user information security. It is an ideal network application solution for network security, industrial automation, workstations, embedded motherboards, etc .
Complete technical details for integration and deployment planning.
| Operating Temperature | -10°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 °C |
| Certification | FCC,CE, RoHS |
| PCB Size(Unit:mm) | 115*76*1.6 |
| Package Size (Unit: mm) | 179* 150*30 |
