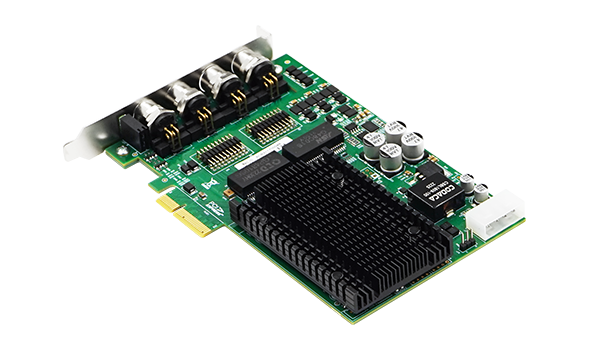

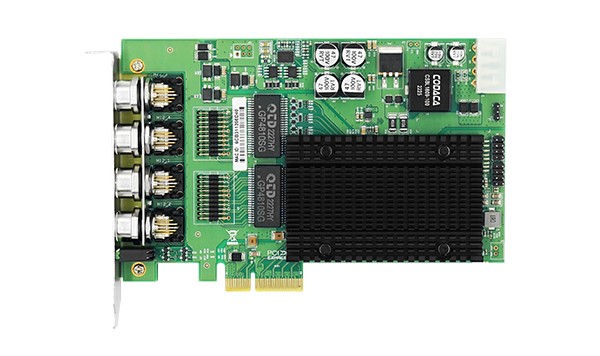

PCIe x4 Quad Copper Port M12 100M Vision Frame Grabber Card (Intel I350 Based)
LRES4012MT-POE is a PCI Express2.1 x4 Quad-port M12 interface (air interface) 100M Vision Frame Grabber Card independently developed by Shenzhen Lianrui Electronics Co., Ltd. (referred to as: LR-LINK). based on the Intel I350 master control solution , Compatible with PCIe x8, x16 lanes at the same time. This network card is mainly designed for industrial field visual inspection equipment, visual field client, fast mobile Ethernet data transmission equipment, field monitoring, industrial monitoring, etc.
LRES4012MT-POE uses a unique D-Code cross shield to isolate two communication signals to achieve signal integrity. At the same time, its rugged and durable characteristics make this product very suitable for harsh environments such as humidity, such as field monitoring, monitoring along railway lines, and industrial production.
Complete technical details for integration and deployment planning.
| System Support | Windows XP/Vista7/8/8.1/10/11 |
|---|
| Bus Type | PCIe v2.1 x4，compatible with x8、x16 |
|---|---|
| Data rate | 10/100/MbE |
| Connector | 4* M12 D-code |
| Protocol Support | IEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| iSCSI | No |
| WoL | No |
| Jumbo Frames | YES |
| DPDK | Yes |
| PXE | Yes |
| FCoE | No |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
