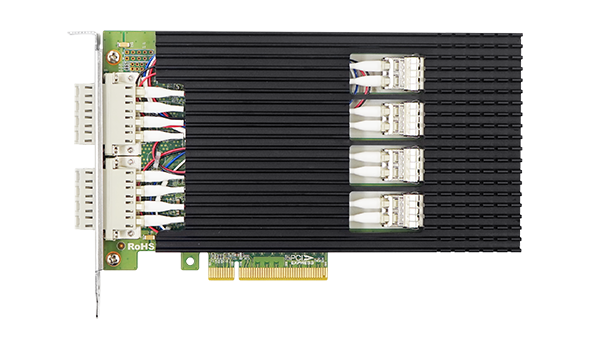

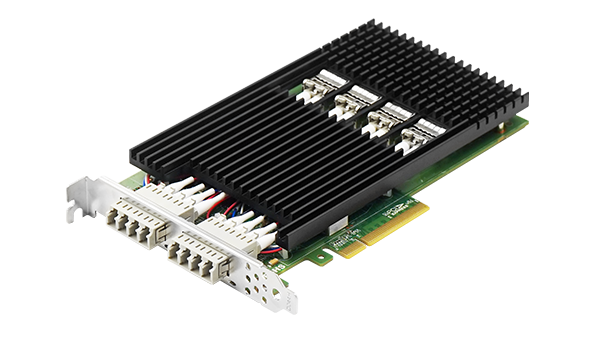

Quad-port 10G SFP+ PCIe 3.0 network adapter with dual-way bypass and Intel XL710 controller for high-throughput gateways.
LR-LINK presents the LRES8003PF-BP-LR, a robust PCIe 3.0 x8 quad-port 10 Gigabit Ethernet network adapter built around the industry-leading Intel XL710 controller. This adapter is engineered to provide exceptional performance and reliability for high-throughput environments, including data centers, cloud computing clusters, and industrial automation systems.
A key differentiator of this product is its dual-way bypass function, which ensures continuous network connectivity even in the event of a host system failure or power loss. This feature makes it an optimal choice for critical infrastructure such as firewalls, routers, and high-availability gateways where uptime is paramount.
Leveraging advanced hardware acceleration, the XL710 offloads TCP/UDP/IP checksums, segmentation, and other processing tasks from the CPU, significantly reducing system overhead and improving overall efficiency. The adapter supports SR-IOV, VMDq, RSS, and DPDK, enabling virtualized environments and software-defined networking solutions to achieve maximum scalability and speed.
Designed with wide compatibility, the LRES8003PF-BP-LR supports a broad range of operating systems including Windows Server, Linux distributions (RHEL, CentOS, Ubuntu), VMware ESXi, and various domestic Chinese OS platforms. Its compact full-height bracket design and efficient thermal management ensure seamless integration into standard server chassis.
Quad-port 10Gbps connectivity via SFP+ for ultra-fast data transfer rates.
Dual-way bypass ensures network continuity during host system failures.
Intel XL710 chipset with hardware acceleration reduces CPU load effectively.
Supports SR-IOV and VMDq for optimized virtual machine performance.
Wide OS support including Windows, Linux, VMware, and domestic systems.

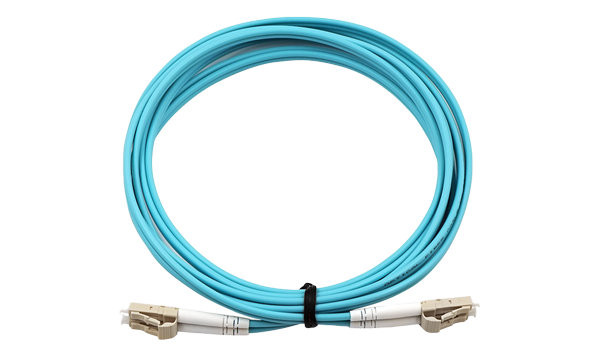

High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe 3.0 x8 |
|---|---|
| Data Rate per Port | 10Gbps |
| Connector | 4x 10G SFP+ |
| Cable Medium | Optical Fiber / Copper |
| Controller | Intel XL710 |
|---|---|
| Ports | Quad-port |
| Bypass Function | Dual-way Bypass |
| Hardware Acceleration | Yes (TCP/UDP/IP Offload) |
| SR-IOV | YES |
|---|---|
| DPDK | YES |
| Jumbo Frames | YES |
| iSCSI | YES (Configurable) |
| FCoE | YES (Configurable) |
| VMDq | YES |
| RSS | YES |
| UEFI | YES |
| PXE | NO |
| WoL | NO |
| Bracket Height | Full Height |
|---|---|
| PCB Size | 107*178*1.6 mm |
| Power Consumption (Min) | 5.748W |
| Power Consumption (Max) | 6.3W |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 90% non-condensing |
| Compliance | FCC, CE, RoHS |
|---|
