Gigabit SFP RJ45 electrical port module

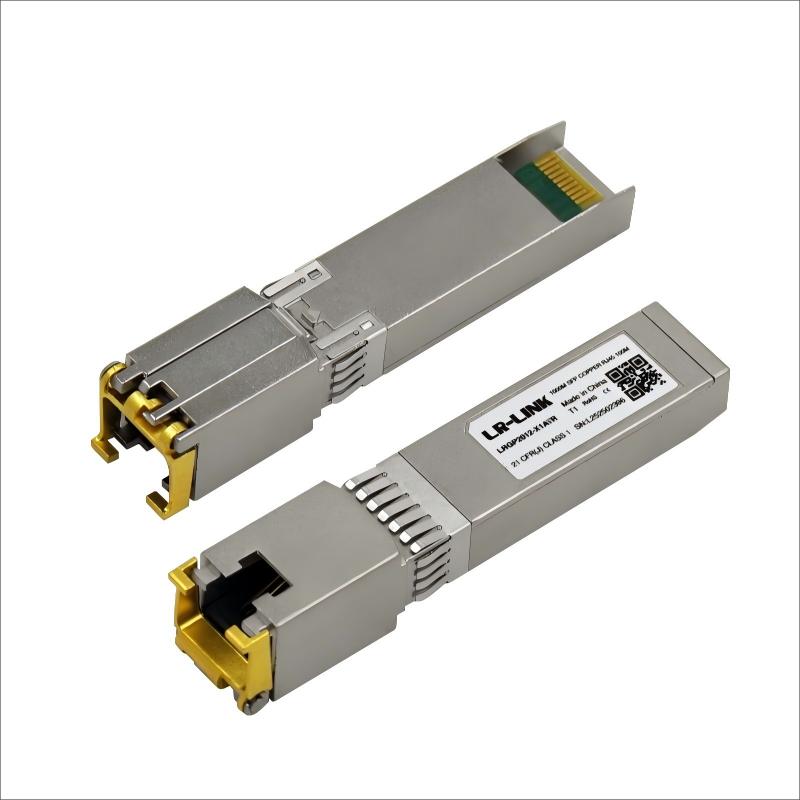

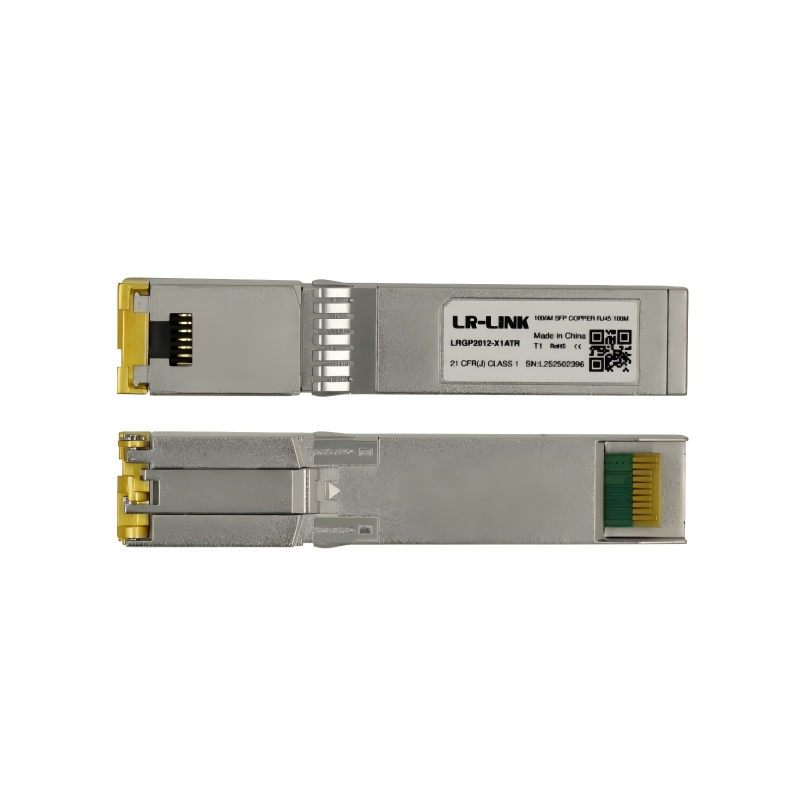

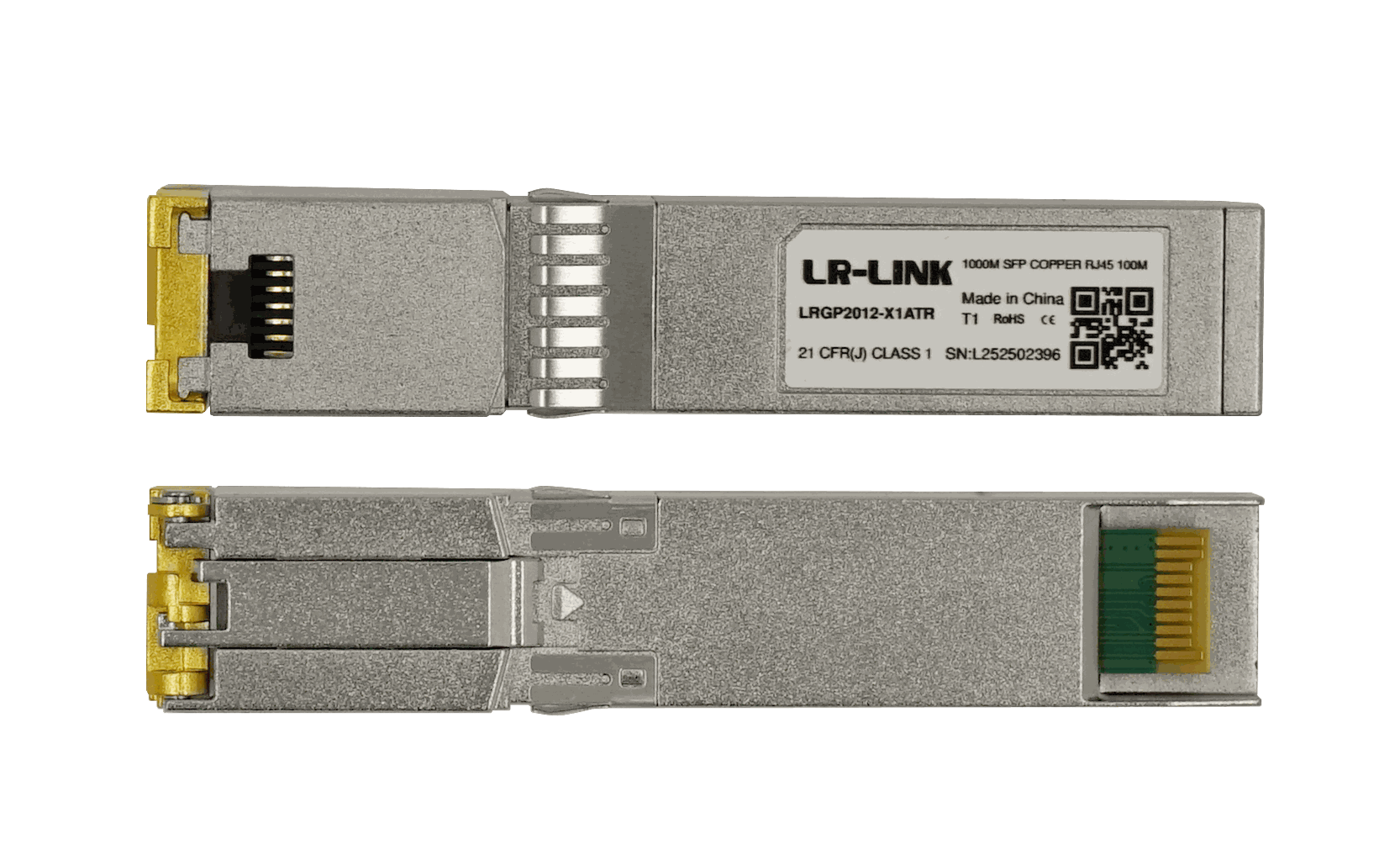

LR-LINK LRGP2012-X1ATR Gigabit SFP RJ45 electrical port module has a bidirectional data transmission capability of up to 1.25Gb/s supports 10M/ 100M/ 1000M transmission rate,and is suitable for 1.25Gb/s Ethernet. It complies with the Ethernet IEEE 802.3,IEEE 802.3u and IEEE 802.3ab standard.LRGP2012-X1ATR uses a CAT5 network cable with a transmission distance of up to 100 meters. It has good electromagnetic compatibility and is compatible with various brands of hosts. It is widely used in data centers and enterprise networks. Access to the PHY chip registers can be achieved through the I2C interface.
As a small pluggable RJ45 electrical port module, LRGP2012-X1ATR conforms to the SFP MSA standard and accesses the physical layer chip through a 2-wire serial bus.
Complete technical details for integration and deployment planning.
| Parameter | Symbol |
|---|---|
| Data rate | DR |
| BER | BER |
| Operating temperature | TC |
| Storage temperature | TSTO |
| Working current | ICC |
| Operating voltage | VCC |
| Maximum voltage | VMAX |
| Parameter | Symbol |
| Single-ended input swing | VIN_PP |
| Single-ended output swing | VOUT_PP |
| Output signal rise time fall time (20%-80%) | tr/tf |
| Tx input impedance | ZIN |
| Rx output impedance | ZOUT |
| Parameter | Symbol |
| line frequency | FL |
| Tx differential output impedance | ZOUT_ TX |
| Rx differential input impedance | ZIN_RX |
| Parameter | Symbol |
| output low level | VOL |
| output high level | VOH |
| input low level | VIL |
| input high level | VIH |
| P/N | Description |
| LRGP2012-X1ATR | Gigabit SFP RJ45 electrical port module |
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
