LRNV9324-2I

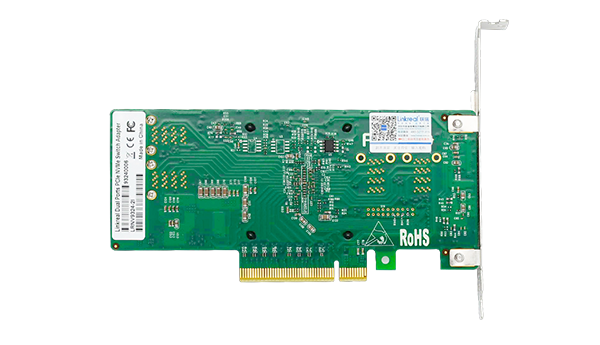

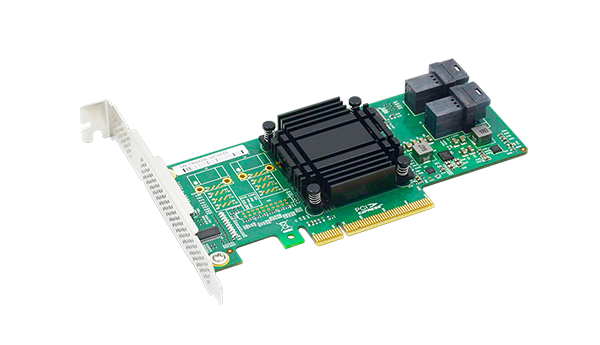

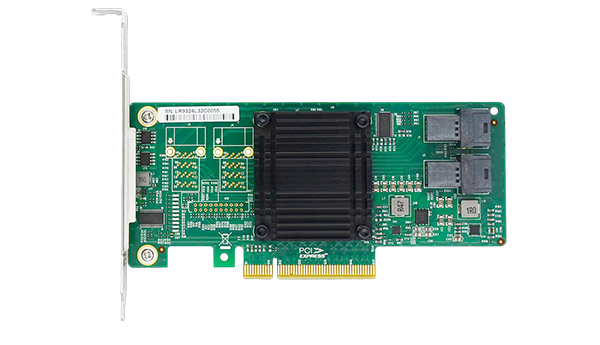

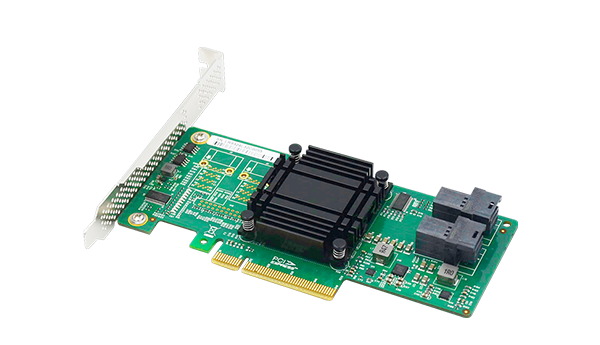

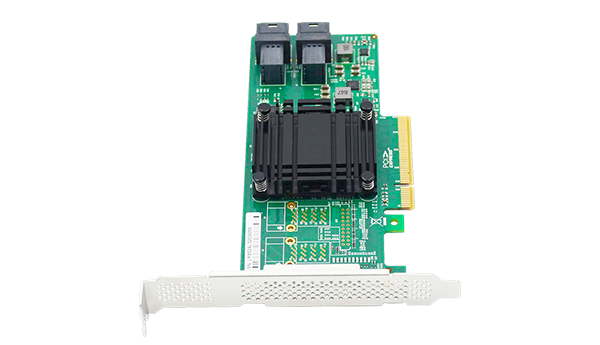

LRNV9324-2I PCIe 3.0 x8 to 2 Port U.2 SFF-8643 NVMe Switch Adapter Card

The PCIe to U.2 Adapter card expands the PC by two internal SFF-8643 NVMe connectors for high-performance storage connectivity. This Host bus adapter card is built on PCI-E switch IC technology and proven NVMe Technology.It addresses the growing demand for increased data throughput and scalability requirement across enterprise-class server platforms, Embedded solutions, desktop/gaming station solution. it delivers cost effective storage solutions using NVMe storage devices and maximum performance and realiability. Perfect for users to connect multiple hosts to their respective endpoints of applications inclduing servers, storage, communications and graphics platforms.

LR-LINK 4 xU.2 to PCIe x16 Adapter for 2.5: LRNV94NF

High Performance & Low Packet Latency

The LRNV9324-2I uses PCIe switch for optimum performance for increased bandwidth, it supports packet cut-thru with a latency of less than 130ns between symmetric(x8 to x8). This, combined with large packet memory, flexible common buffer/FC credit pool and non-blocking internal switch architecture, provides full line rate on all ports for performance-hungry applications such as servers and switch fabrics. The low latency enables applications to achieve high throughput and performance and supports a packet payload size of up to 2048 bytes, enabling the user to achieve even higher throughput.
