LRNV9347L-2I
LRNV9347L-2I PCI Express 3.0 x8 to 2 x U.2 (SFF-8643) NVMe Switch Adapter

Product Description

LRNV9347 NVMe Adapter is PCI Express x8 Gen3 PCIe switch Card. It expands the maximum storage of the 2 U.2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance.

4 xU.2 to PCIe x16 Adapter for 2.5: LRNV94NF

Functional Characteristics

·         Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).

·         Compliant with PCI Power Management Spec, r1.2.

·         Microsoft Vista Compliant.

·         Supports Access Control Services.

·         High Performance. Non-blocking switch fabric, Full line rate on all ports.

·         Quality of Service.

·         Reliability, Availability, Serviceability.

·         Supports PCIe NVME ports.

Applications

Suitable for NVMe SSD support PCI Express, it can get the maximum bandwidth and transfer rate while the 2 U.2 NVMe SSD running at the same time.

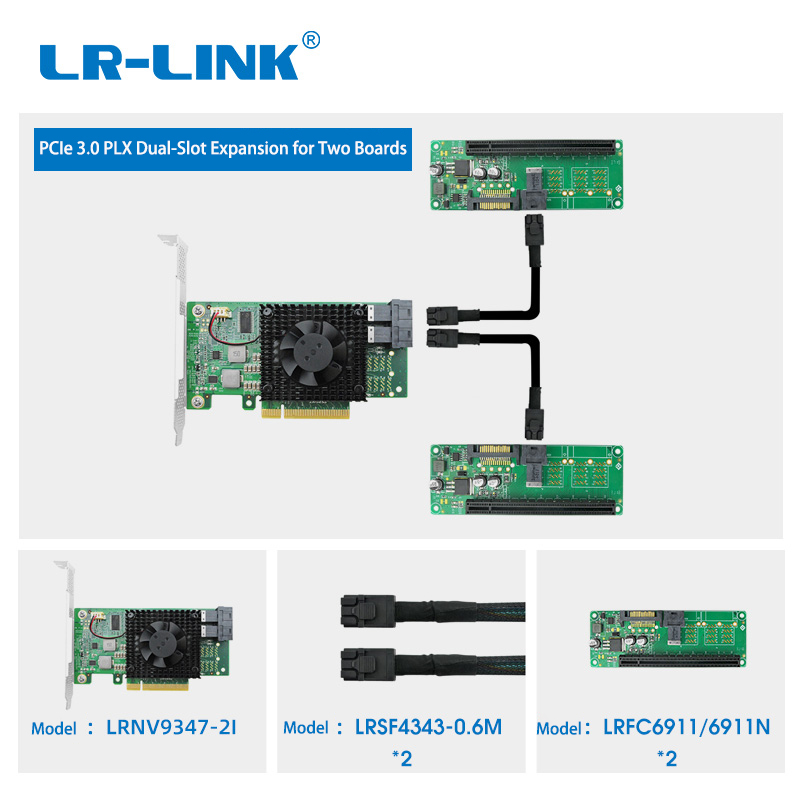

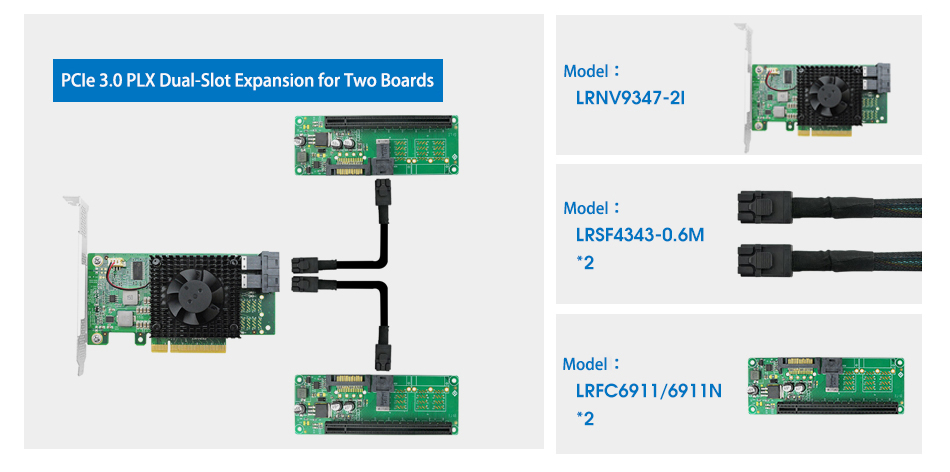

GPU Expansion Solution

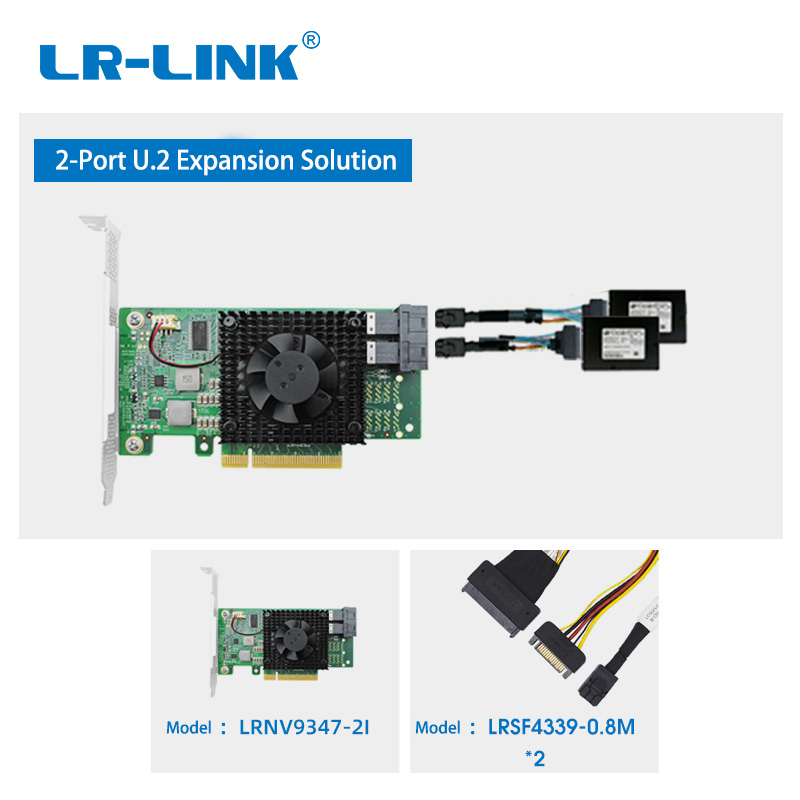

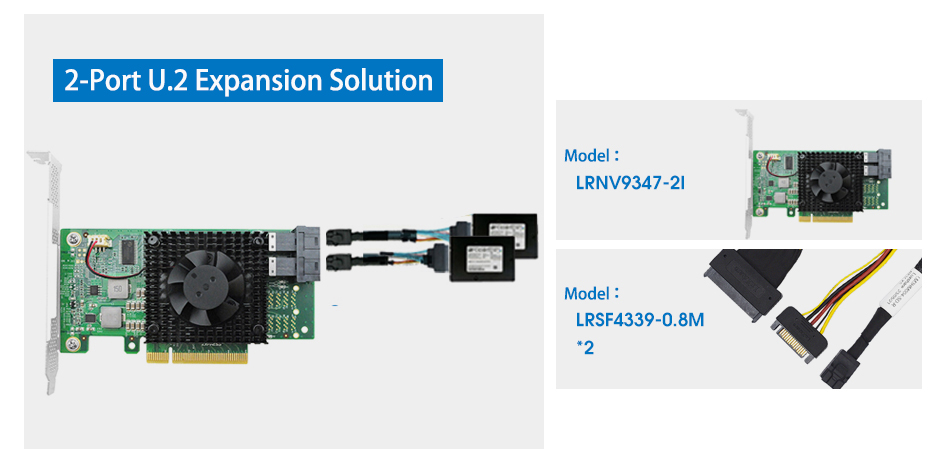

U.2 Expansion Solution
