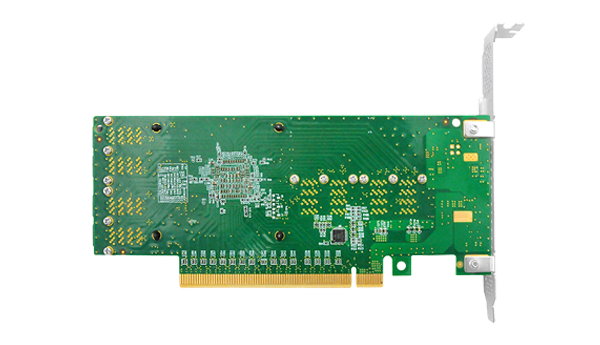

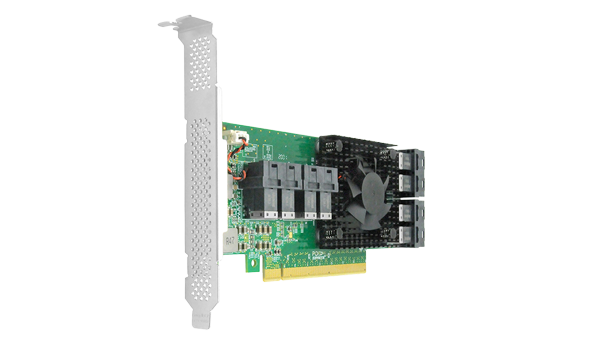

LRNV9348-8I PCI Express x16 to 8 U.2 SFF-8643 NVMe SSD Adapter Card
LRNV9348-8I NVMe Series is PCI Express x16 Gen3 Multi-Host PCI-e switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.
High Performance & Low Packet Latency
The LRNV9348-8I supports packet cut-thru with a maximum latency of 126ns (x16 to x16). This combined with large packet memory,flexible common buffer/FC credit pool and non-blocking internal switch architecture, provides full line rate on all ports for performance-hungry applications such as servers and switch fabrics. The low latency enables applications to achieve high throughput and performance and supports a packet payload size of up to 2048 bytes, enabling the user to achieve even higher throughput.
LR-LINK 4 xU.2 to PCIe x16 Adapter for 2.5: LRNV94NF
Complete technical details for integration and deployment planning.
| Model | LRNV9348-8I |
|---|---|
| Number of Drives | 8 internal |
| I/O Controller | PEX 8748 |
| Bus Type | PCI Express |
| Compatible Device | 8 Port NVMe SSD or 8 Port PCIe x4 or 4 Port PCIe x8 or 2 Port PCIe x16 |
| Device Connector | SFF-8643 |
|---|---|
| Host Connector | PCIe x16 |
| OS supported list | RedHat; Suse; Mircosoft Windows; Vmware; MAC OSX; FreeBSD |
|---|
| Humidity | 15% ~ 90% |
|---|---|
| OperatingTemperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Product Dimension | 165mm x 68.90mm |
|---|---|
| Product Weight | 148g |
| Warranty | 2 Years |
|---|
| Included in Package | 1 - PCI Express x16 to 8 U.2 (SFF-8643) NVMe Adapter Card |
|---|
