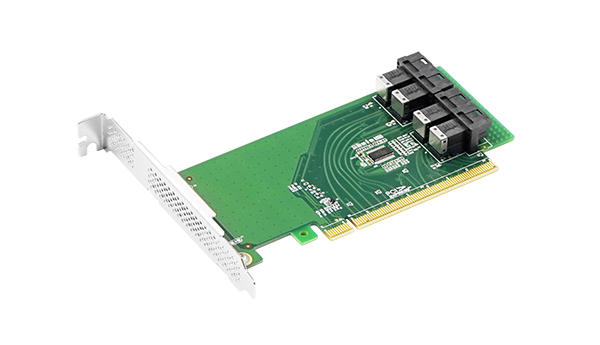

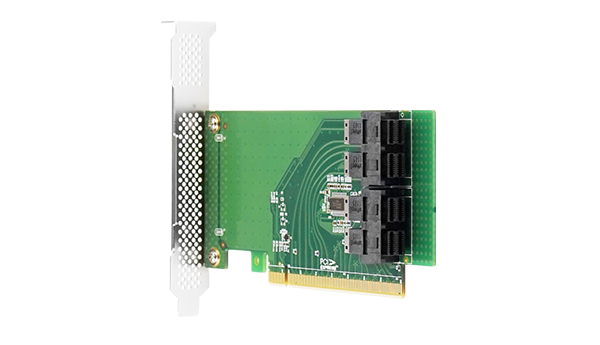

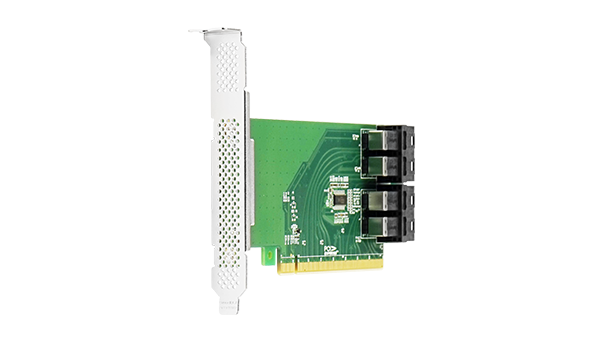

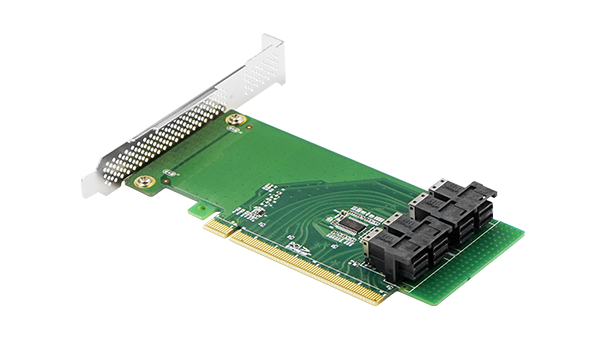

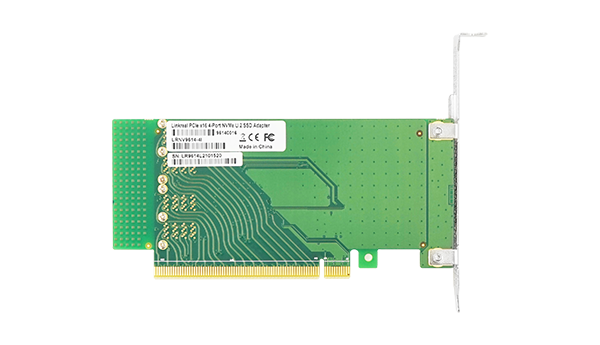

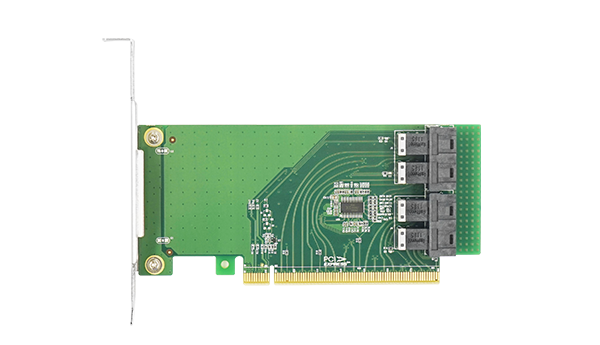

LRNV93NF 4 Ports U.2 to PCIe x16 Bifurcation Controller Card
LRNV93NF is a PCI Express x16 Bifurcation Riser Card for PCIe 3.0 to SFF-8643 connector. It connects to NVMe SSD or PCIe connectors via SFF-8643 connector and Cables. This card requires SPLIT PCIE on the motherboard to support Four U.2 NVMe hard drives, and BIOS supports PCIe Slot bifurcation.
Features:
Comes with a full-profile bracket (preinstalled), and also includes a low-profile bracket for a small form-factor computer.
Computer with PCI Express Slot (x16) support PCIe bifurcation mode.
Please kindly verify with your mainboard manufacturer (such as Intel, Supermicro, Tyan, ASRock, Gigabyte...) to make sure the motherboard BIOS support Bifurcation for the PCI Express you are using.
Advantages
Upgrade your data center or enterprise-level applications with U.2 NVMe SSD capability
Utilize the advanced performance of a PCIe NVMe 2.5 in. SSD for intensive data workloads - ideal for numerous professionals from architects to medical professionals
Work with large files more efficiently for audio/video production and editing
LR-LINK 4 xU.2 to PCIe x16 Adapter for 2.5: LRNV94NF
Complete technical details for integration and deployment planning.
| Model | LRNV93NF |
|---|---|
| Number of Device | 4 internal |
| Bus Type | PCI Express |
| Compatible Device | U.2 (PCIe_NVMe SSD, SFF-8639) |
| Interface | SFF-8643 |
| Drive Connectors | 4*SFF-8643 (36 Pin,x4 PCIe Gen 3) |
|---|---|
| Host Connectors | PCI Express x16 |
| Humidity | 15% ~ 90% |
|---|---|
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Product Dimension | 69mm x 147mm |
|---|---|
| Product Weight | 76g |
| Warranty | 2 Years |
|---|
| Shipping (Package) Weight | 4.5 oz [128 g] |
|---|
| Included in Package | 1 - U.2 Ports to PCIe x16 Bifurcation Controller |
|---|
