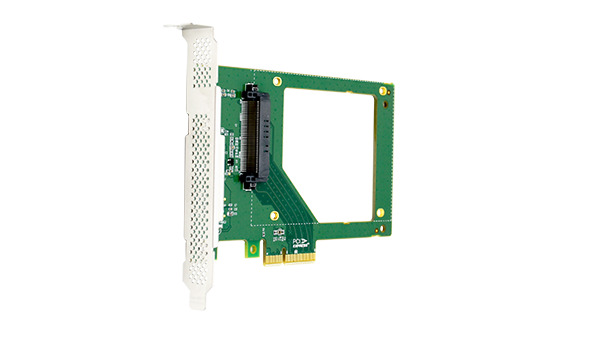

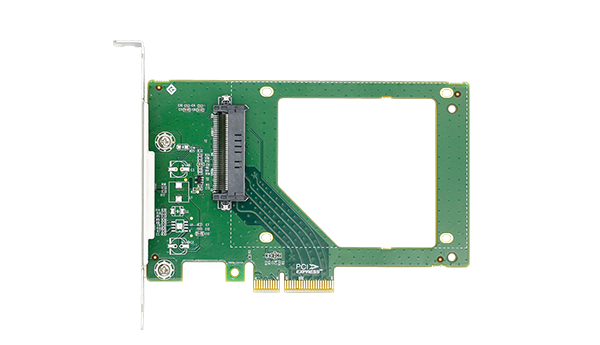

LRNV9411U3 PCIe x4 to U.3 NVMe SSD Adapter
The LRNV9411U3 allows you to install an Extremely High Performance Enterprise-Class 2.5" U.3 SSD on LRNV9411U3 PCIe Card for Enthusiast Gaming and Workstation Markets.
Features:
Mount a 2.5-inch U.3 SSD onto a PCI Express Add-in card and install on a PCIe x4 slot. No cables are required.
The adapter is a PCI Express 4.0 4-lane Host adapter. Supports PCIe 4.0 and PCIe 3.0 motherboard
The SFF-8639 interface socket is for U.3 SSD.
No driver installation is required.
System Requirement:
- An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.
Note: The SFF-8639 interface socket on this card is for U.3 SSD. It does not support U.2 SSD.
Complete technical details for integration and deployment planning.
| Model | LRNV9411U3 |
|---|---|
| Interface | PCI Express 4.0 x4 |
| Compatible Drive | U.3 (PCIe NVMe SSD, SFF-8639) |
| Drive Connector | 68-pin Female SFF-8639 Connector |
|---|
| Humidity | 15% ~ 90% |
|---|---|
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Product Dimension | 137mm X90mm |
|---|---|
| Product Weight | 57g |
| Shipping Weight | 4.4oz [125 g] |
| Warranty | 3 Years |
|---|
| Included in Package | 1 - PCIe to U.2 Adapter For 2.5" U.3 NVMe SSD |
|---|
