Dual-port U.2 NVMe adapter based on Marvell 88NR2241, supporting RAID and hot-swap for high-speed storage.

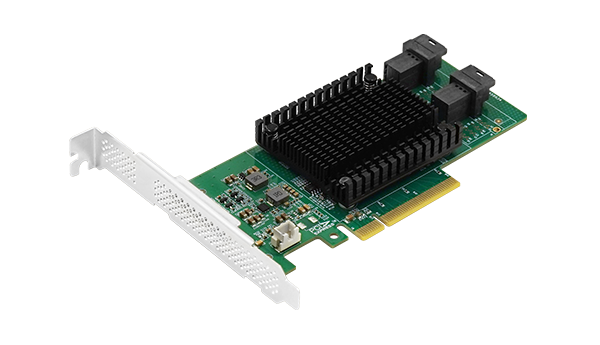

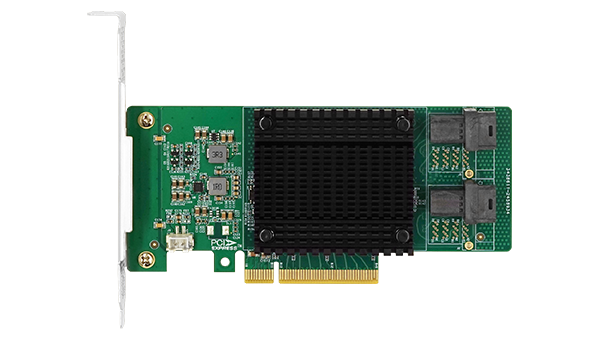

LR-LINK presents the LRNV9441-2IR, a robust PCIe 3.0 x8 to dual-port U.2 NVMe adapter designed for high-efficiency data transmission. Built on the reliable Marvell 88NR2241 chipset, this network card ensures low latency and high bandwidth, making it perfect for demanding server environments.
This adapter supports up to two physical SSDs via U.2 interfaces, enabling parallel connections for ultra-large storage capacity. It features comprehensive RAID capabilities including RAID 0, RAID 1, and JBOD, allowing users to configure optimal data redundancy and performance levels according to their specific needs.
Designed for versatility and ease of use, the LRNV9441-2IR supports hot-swapping and is compatible with a wide range of operating systems, including Windows Server, Linux distributions, and VMware ESXi. Its compact form factor fits standard PCIe slots, providing a stable and secure storage environment for data centers, workstations, and industrial applications.
Delivers 64Gbps transfer speed via PCIe 3.0 x8 for rapid data transmission.
Supports two U.2 NVMe SSDs simultaneously for expanded storage capacity.
Features RAID 0, 1, and JBOD modes to ensure data integrity and reliability.
NVMe protocol support minimizes latency for high-performance computing tasks.
Allows drive replacement without powering down the system for continuous operation.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe 3.0 x8 |
|---|---|
| External Port | U.2 |
| Interface Count | 2 |
| Transfer Speed | 64Gbps |
| Protocol Support | NVMe |
| I/O Controller | Marvell 88NR2241 |
|---|
| RAID Support | |
|---|---|
| Hot Swap | YES |
| SSD Support | Up to 2 Physical SSDs |
| PCB Size | 147.5*68.9*1.6 mm |
|---|---|
| Package Size | 222*147*28 mm |
| Bracket | Full bracket (installed) and Low bracket |
| Operating Temperature | 5℃ - 50℃ |
|---|---|
| Storage Temperature | -25℃ - 70℃ |
| Humidity | 90% non-condensing at 35°C |
| Power (min) | 4.896W |
|---|---|
| Power (max) | 5.076W |
