Quad-port M.2 NVMe adapter with RAID support, high bandwidth, and non-blocking switching architecture.

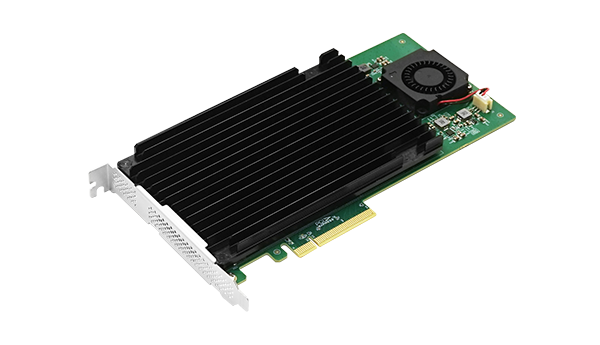

LR-LINK presents the LRNV9541-4IR, a robust PCIe 3.0 x8 to Quad-port M.2 NVMe Adapter engineered around the advanced Marvell 88NR2241B0 main control solution. This adapter significantly extends maximum storage space by connecting up to four M.2 SSDs simultaneously, providing scalable, high-bandwidth, and non-blocking interconnections essential for demanding data center and server environments.
Designed for optimal performance in graphics applications, this network adapter supports peer-to-peer traffic and multicast capabilities while accommodating high-resolution graphics workloads. It ensures full wire speed on all ports through its high-performance switching architecture, making it ideal for host-centric peer-to-peer communication models where low latency and high throughput are critical.
The LRNV9541-4IR offers versatile compatibility with various M.2 SSD sizes (2242, 2260, 2280, 22110mm) and supports RAID 0, RAID 1, and JBOD modes for flexible data management. Compatible with PCIe 1.0/1.1/2.0 standards, it integrates seamlessly into existing infrastructure, supporting a wide range of operating systems from Windows Server to Linux distributions and VMware ESXi, ensuring broad applicability across cloud computing, AI training clusters, and industrial automation sectors.
Non-blocking switching architecture delivers full wire speed on all four ports for maximum throughput.
Supports four simultaneous M.2 NVMe SSDs for extensive storage expansion and scalability.
Flexible data protection and performance with RAID 0, RAID 1, and JBOD configuration options.
Powered by Marvell 88NR2241B0 for reliable, high-speed NVMe protocol processing.
Optimized for high-resolution graphics with peer-to-peer transfer and multicast support.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe 3.0 x8 |
|---|---|
| Host Bus Compatibility | PCIe x8, compatible with x16 |
| External Port Interface | M.2 |
| Number of Ports | 4 |
| Transfer Speed | 64Gbps |
| Protocol Support | PCIe NVMe |
| I/O Controller | Marvell 88NR2241B0 |
|---|---|
| RAID Support | RAID 0, RAID 1, JBOD |
| PCB Size (LxWxH) | 209.46 x 110.38 x 1.6 mm |
|---|---|
| Package Size (LxWxH) | 222 x 147 x 28 mm |
| Bracket Type | Full Height |
| Supported SSD Sizes | 2242, 2260, 2280, 22110mm |
| Operating Temperature | 5℃ - 50℃ |
|---|---|
| Storage Temperature | -25℃ - 70℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Power Consumption (Min) | 13.344W |
|---|---|
| Power Consumption (Max) | 19.32W |
| Certifications | FCC, CE, RoHS |
|---|
