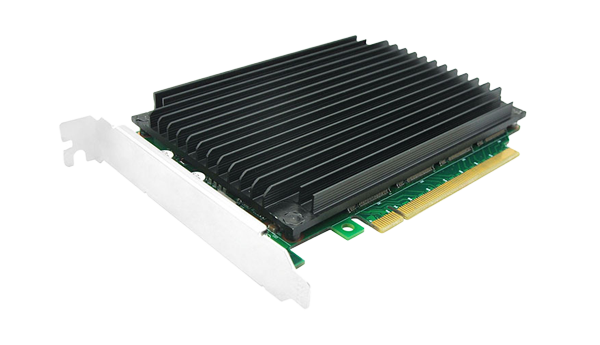

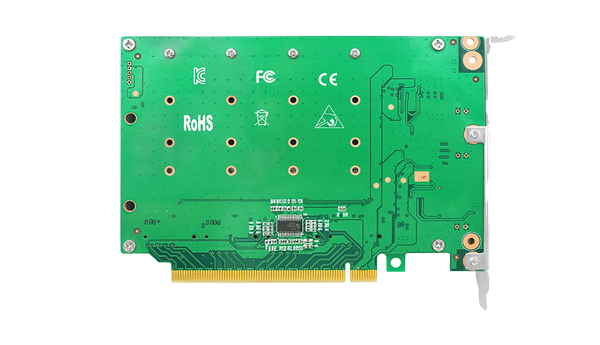

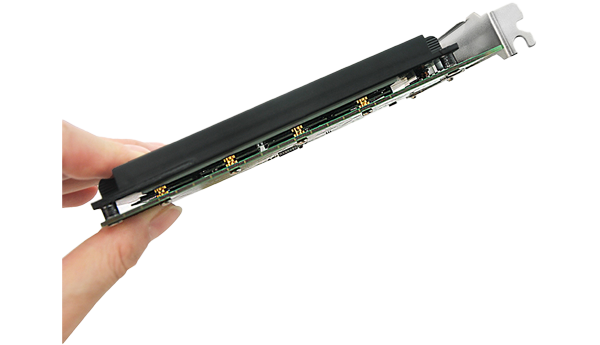

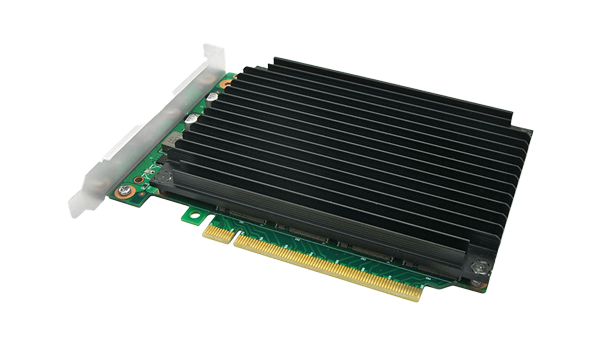

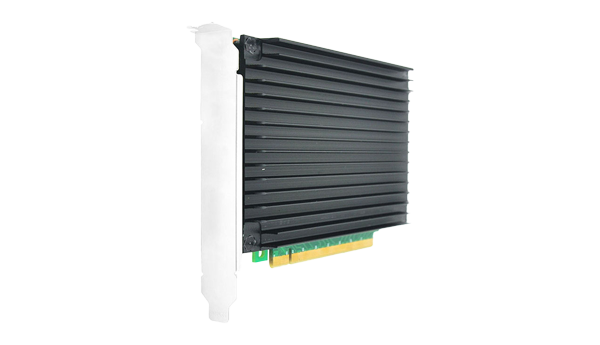

LRNV95NF PCIe 4.0 x16 to M.2 NVMe Expansion Card
Boost your system speed and performance
The adapter connects directly to your computer motherboard to support 4 M.2 PCIe-based SSD (NVMe) through ultra-fast x4 PCIe running at the same time. The adapter is compatible with PCIe 4.0 motherboards and is also backward compatible with PCIe 3.0 and PCIe 2.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
Supports PCIe M.2 SSDs
The adapter supports PCIe 4.0 x4 NVMe (M Key) and PCIe M.2 SSDs including 2230, 2242, 2260 and 2280 drives. The expansion adapter supports the most common drive sizes including 80 mm, 60 mm, 42 mm and 30mm.
Applications
Connect a PCIe M.2 SSD to your computer through an available x16 PCI Express expansion slot to boost system speed and increase internal data storage
Get ultra-fast data access, ideal for gaming or high-performance workstations
Install your operating system on an M.2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage.
LR-LINK PCI Express x16 to Quad M.2 NVMe SSD Switch Adapter: LRNV9547L-4I
Complete technical details for integration and deployment planning.
| Model | LRNV95NF |
|---|---|
| Number of Device | 4 Internal |
| Bus Type | PCI Express |
| Compatible Device | M.2 NVMe SSD or M.2 PCIe Adapter |
| Interface | PCI Express |
| Device Connector | 4*M.2 (PCIe, M-Key, NGFF) |
|---|---|
| Host Connector | PCI Express x16 |
| Humidity | 15% ~ 90% |
|---|---|
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Product Dimension | 106mm x150mm |
|---|---|
| Product Weight | 88g |
| Warranty | 2 Years |
|---|
| Shipping (Package) Weight | 4.5 oz [128 g] |
|---|
| Included in Package | 1 - PCIe M.2 PCIe NVMe SSD Adapter |
|---|
