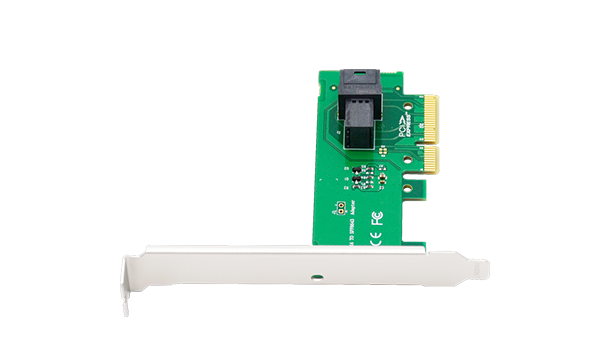

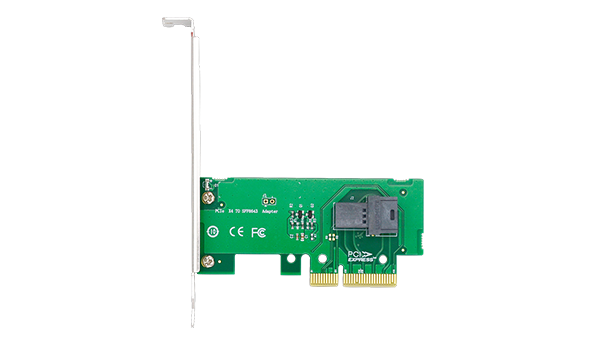

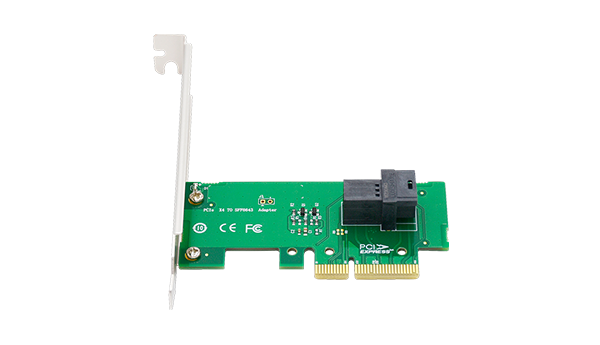

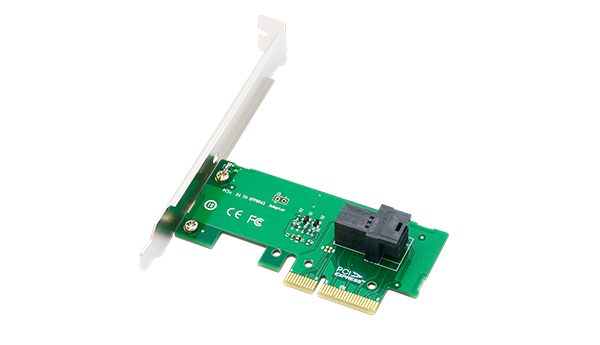

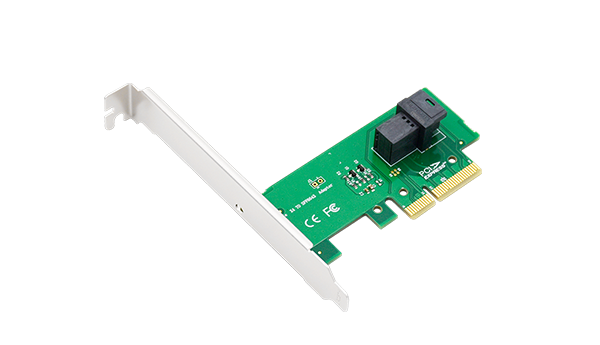

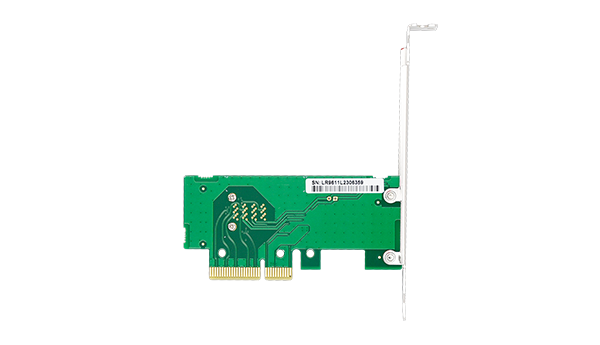

LRNV9611 PCI Express x4 to SFF-8643 Adapter for PCIe NVMe U.2 SSD
This SFF-8643 U.2 to PCIe 4x adapter converts the PCIe interface on the motherboard into a U.2 or connect 2.5" NVMe U. 2 (SFF-8639) SSD to the PCIe interface of the motherboard via the SFF-8643 to the SFF-8639 cable.The U.2 SSD could in loaded onto a backplane that has the SFF-8643 connector to interface with Adapter, allowing the U.2 SSD to be used like a drive cartridge.
LR-LINK Expansion Solution PCIe x16 4-port NVMe Switch Adapter: LRNV9F48
Features
PCI Express 3.0 x4 lane host adapter
Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable
Add an enterprise-class PCIe NVMe 2.5 in. U.2 SSD capability to your PC or server
Compatible with PCIe 3.0 and PCIe 2.0 motherboards
Comes with full-profile bracket (installed) and low-profile bracket
No drivers required for this converter
Fully RoHS Compliant
Operating system support: Windows 7/8/8. 1/10 of 64 - bit UEFI version 2.3.1 or above
PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter: LRNV9F24
Complete technical details for integration and deployment planning.
| Model | LRNV9611 |
|---|---|
| Number of Drive | One 36-pin SFF-8643 connector |
| Bus Type | PCI Express 4.0 x4 |
| Compatible Device Type | 1 NVMe SSD |
| Interface | 1* SFF-8643 |
| Device Connector | 1* SFF-8643 |
|---|---|
| Host Bus | PCIe x4 |
| Humidity | 0% – 90% |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 65°C (14°F to 149°F) |
| Dimension | 90mm*43mm |
|---|---|
| Product Weight | 25g |
| Warranty | 3 Years |
|---|
