PCIe 4.0 x16 10*SFF-8654 8i NVMe Switch Adapter Expandable to 20 SSD

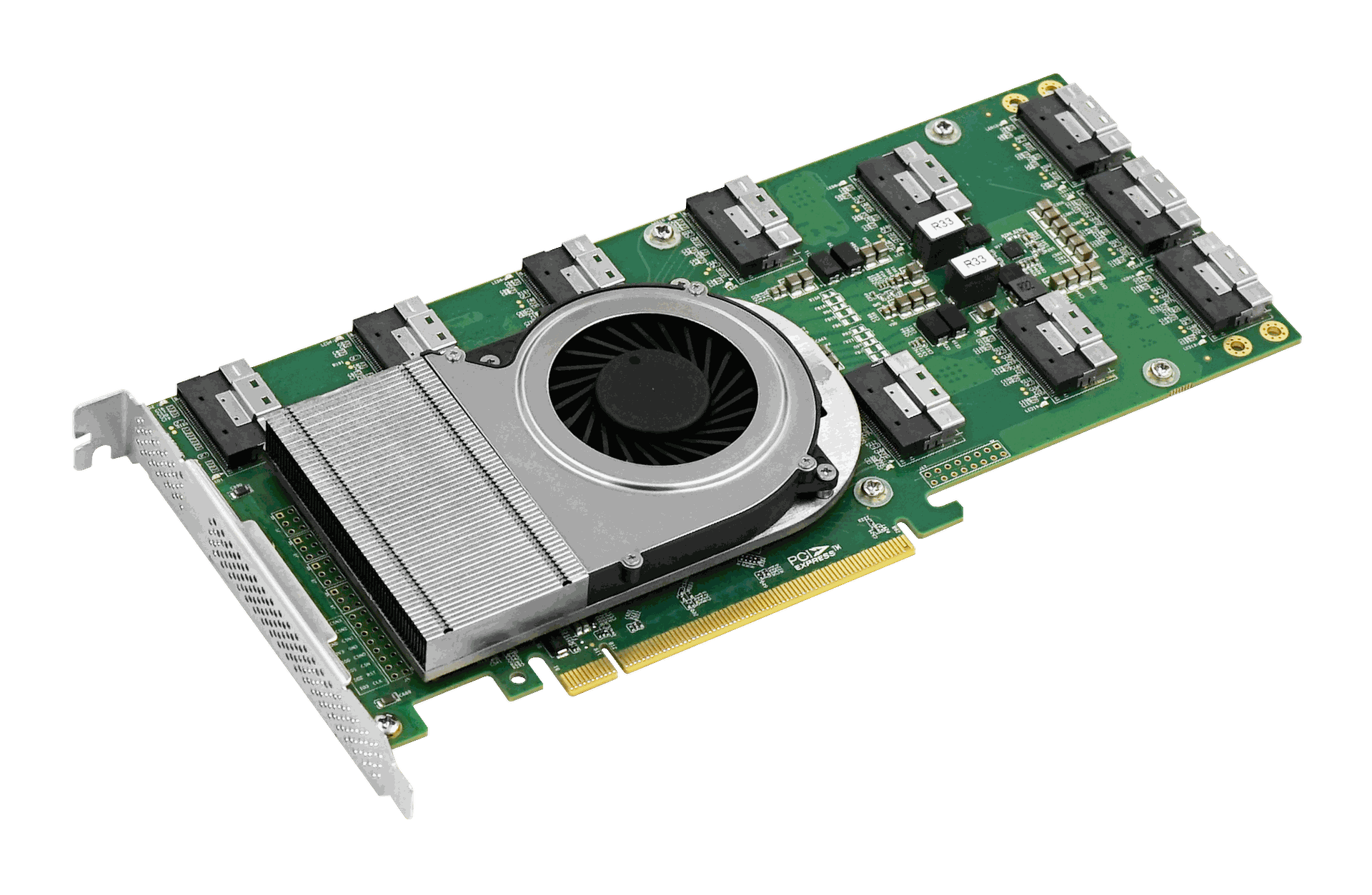

LRNV9F96-10I is a PCIe4.0X16 to 10-port built-in 8654 8I NVMe switching adapter developed by Linkreal Co., Ltd. based on Broadcom PEX88096. With its own switch function, the adapter supports multiple PCIe channel split modes, including 20 X4, 10 x8, or 5 x16 configurations, allowing users to easily adjust and optimize the data transmission architecture and save PCIe resources according to actual application requirements. With a transfer rate of up to 256Gb/s, the LRNV9F96-10I can directly support up to 20 U.2 SSDS, designed for high-end applications such as SSD performance testing and GPU expansion testing, and provides enterprise-class NVMe storage connectivity for a variety of industry-standard x86 server and workstation platforms. Large capacity expansion solution for flash server. With high-bandwidth, low-latency PCIe 4.0 connectivity, test data is accurate and real-time, accelerating product development and validation processes.

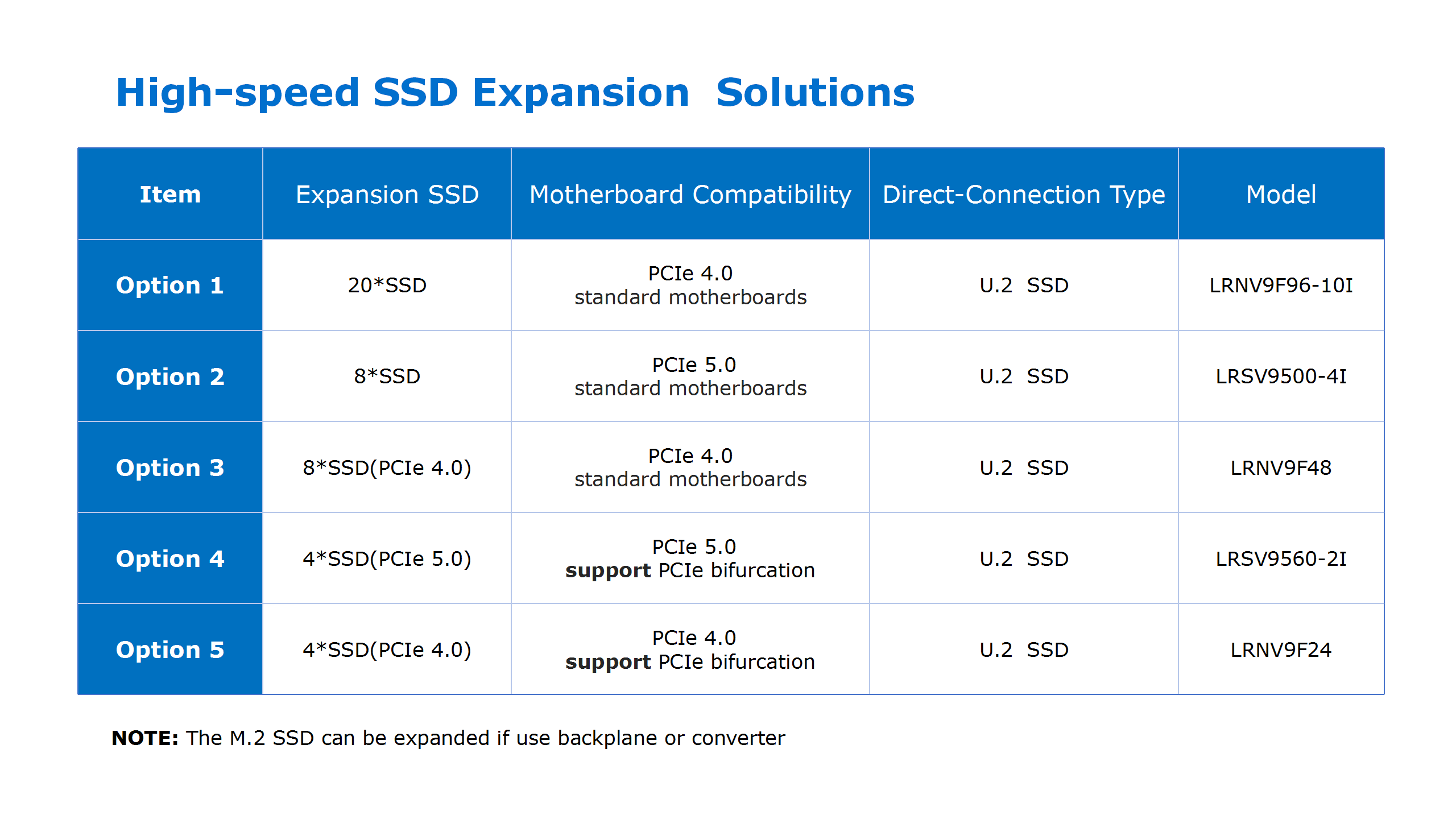

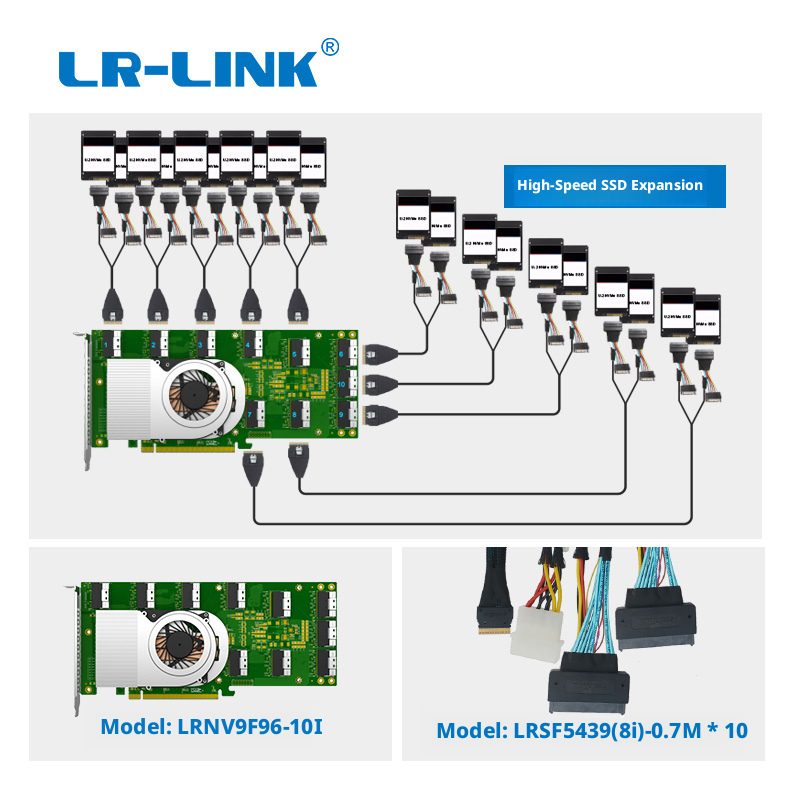

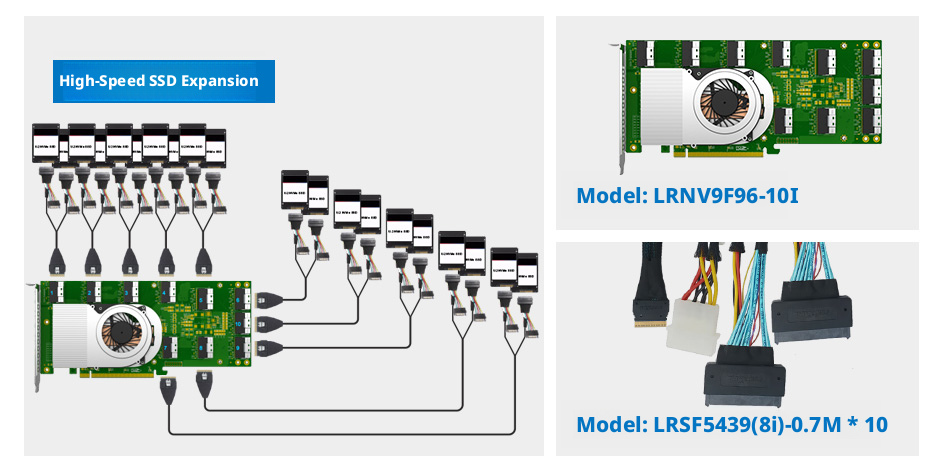

LRNV9F96-10I SSD Expansion Solution

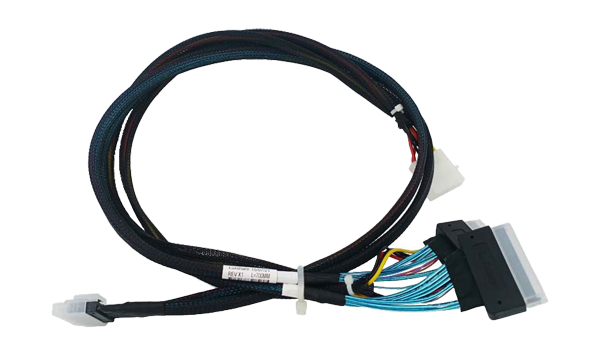

High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Operating System Support | * Windows 8.1/10 /11* Windows Server 2012/2016 * Windows Server 2019 /2022* RHEL/Centos7.6 /7.9 /8.2 /8.3/9.0* Deepin 15.11 /20 /20.6 /20.9* Ubuntu 16.04.3/18.04.5 /20.04.1 /22.04* SUSE 15 SP2* FreeBSD 12.2 /13.2* NewStart Desktop OS 4.5.2* FusionOS 22.06/23.06 |
|---|---|
| Operating Temperature | 5°C - 50°C |
| Storage Temperature | -25°C - 70°C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
| PCB size(unit:mm) | 267 * 110.38 |
| Baffle specifications | Full bracket(installed) |
| Expansion Card | *1 |
| Product warranty card | *1 |
| Packing | Carton and Anti-static Bag |
