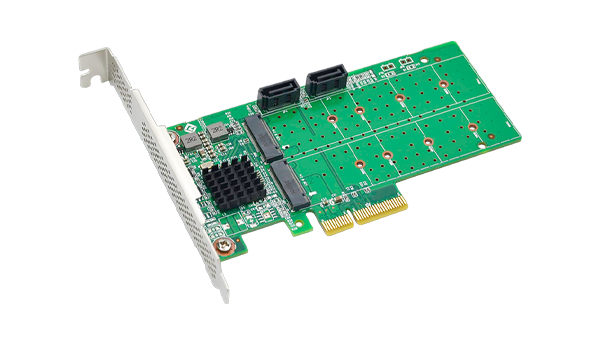

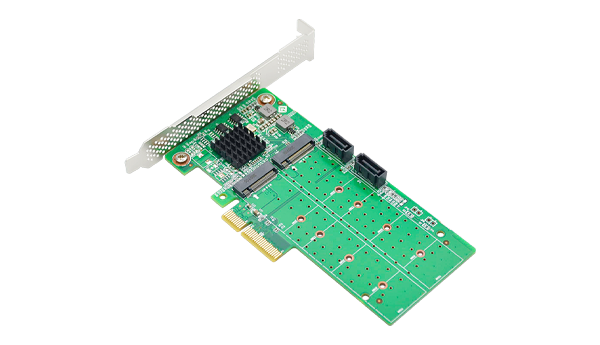

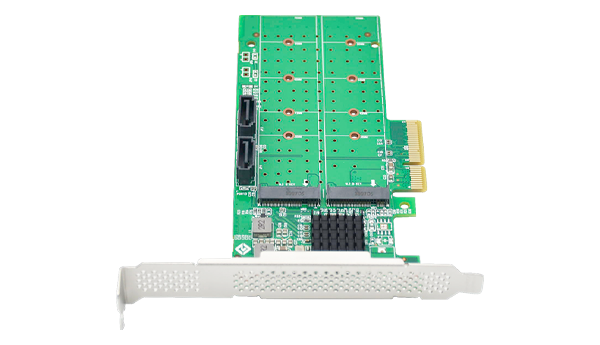

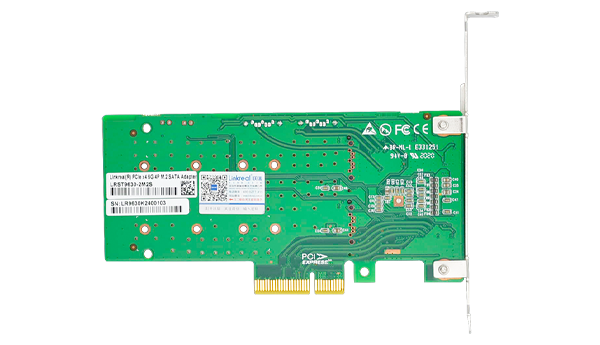

Marvell 88SE9230 based PCIe 2.0 expansion card with 2 M.2 and 2 SATA ports for RAID storage solutions.
LR-LINK presents the LRST9630-2M2S, a specialized PCIe 2.0 to SATA/M.2 RAID controller designed to bridge the gap between modern storage needs and legacy motherboard limitations. Built on the robust Marvell 88SE9230 chip scheme, this adapter ensures native command queuing (NCQ) and message signaled interrupts (MSI) for optimized data throughput and system stability.
This skinny version adapter card features a versatile interface configuration with two M.2 B-Key slots and two standard SATA 3.0 ports. It supports communication speeds up to 6.0Gbps, fully compatible with SATA 3.0 specifications while maintaining backward compatibility with SATA 2.0 and 1.5G drives. The card supports AHCI 1.0 and IDE programming interfaces, ensuring broad operating system support including Windows Server, Windows 7/8, and Linux kernels.
Designed for enterprise and industrial applications, the LRST9630-2M2S offers comprehensive RAID levels including 0, 1, and 10 for enhanced data protection and performance. It supports hot-plugging and heat-exchanging, partial/slumber power management, and port multiplier switching. With dimensions of 136mm x 69mm, it fits perfectly into 2U and 3U metal cases, providing a scalable storage solution for data centers and industrial automation environments.
Supports SATA 3.0 speeds up to 6.0Gbps for rapid data transfer.
Combines 2 M.2 B-Key slots with 2 SATA ports for flexible storage.
Hardware RAID 0, 1, and 10 support ensures data integrity and redundancy.
Powered by Marvell 88SE9230 for stable and efficient operation.
Supports hot-plugging and heat-exchanging for easy maintenance.
Complete technical details for integration and deployment planning.

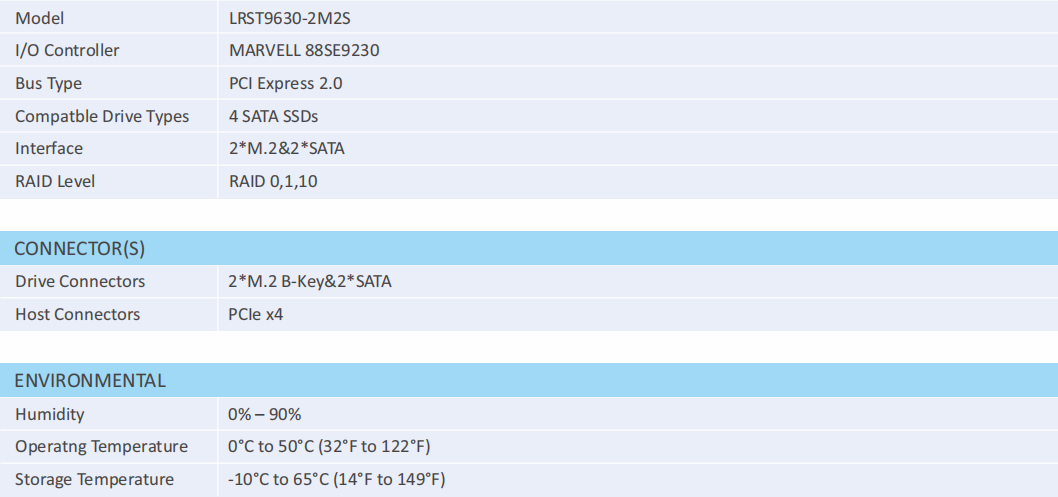

| Host Interface | PCIe x4 (Compatible with PCIe x8, x16) |
|---|---|
| Drive Connectors | 2*M.2 B-Key, 2*SATA |
| Bus Type | PCI Express 2.0 |
| RAID Levels | RAID 0, 1, 10 |
| I/O Controller | MARVELL 88SE9230 |
|---|---|
| Transfer Speeds | 6.0Gbps, 3.0Gbps, 1.5Gbps |
| Compatibility | SATA 3.0, SATA 2.0, SATA 1.5G |
| Supported Drives | 4 SATA SSDs / HDDs |
| Advanced Features |
|---|

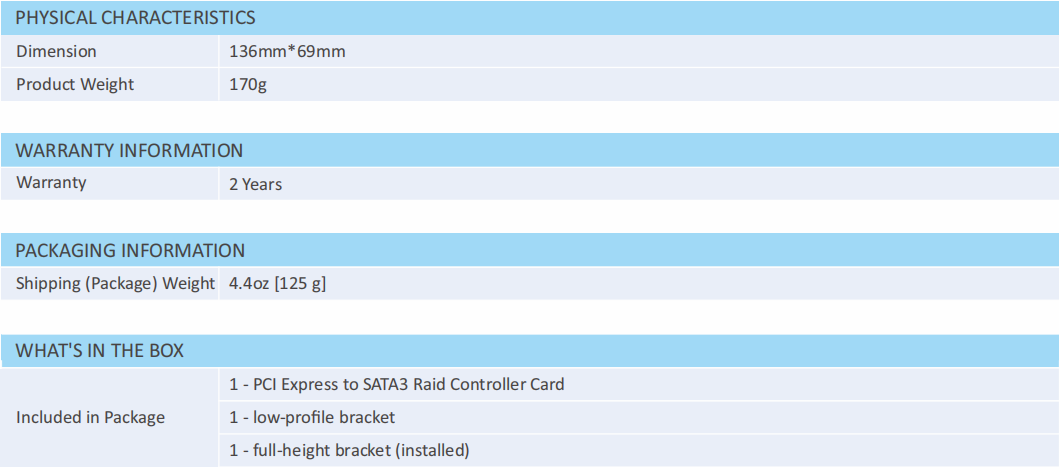

| Dimensions | 136mm * 69mm |
|---|---|
| Weight | 170g |
| Form Factor | Skinny Adapter Card (Low Profile) |
| Bracket | Low-profile and Full-height brackets included |
| Operating Temperature | 0°C to 50°C |
|---|---|
| Storage Temperature | -10°C to 65°C |
| Humidity | 0% – 90% |
| Standards | SATA 3.0 Specification, PCIe 2.0 Specification |
|---|
