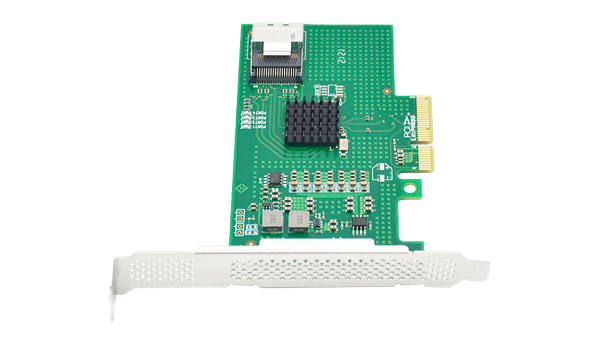

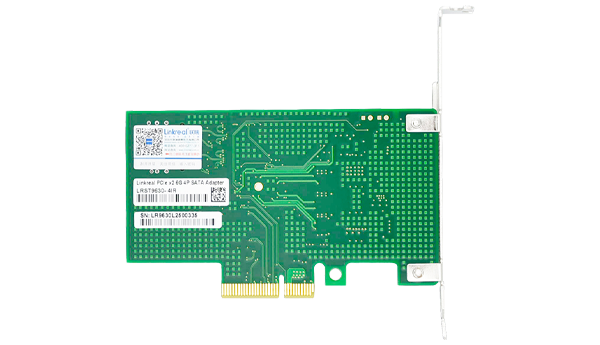

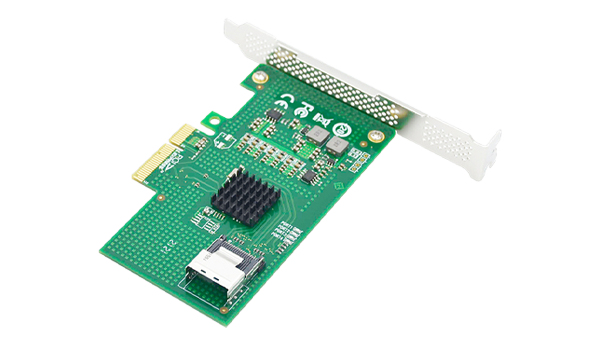

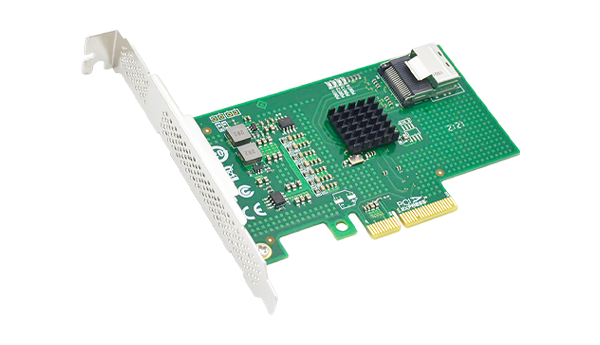

Marvell 88SE9230 based PCIe 2.0 x4 adapter providing four internal SATA 6Gbps ports for RAID and storage expansion.
LR-LINK presents the LRST9630-4IR, a robust PCIe 2.0 x4 SATA adapter engineered for reliable data storage expansion. Featuring the industry-standard Marvell 88SE9230 controller, this card delivers native SATA 6Gbps speeds, backward compatible with 3.0Gbps and 1.5Gbps devices. It is specifically designed to integrate seamlessly into PCs, industrial PCs (IPCs), and server environments requiring additional internal storage connectivity.
This adapter supports comprehensive hardware RAID configurations including RAID 0, 1, 10, and JBOD, allowing users to optimize performance, redundancy, or capacity according to their needs. It complies with the SATA 3.1 specification and supports advanced features such as Native Command Queuing (NCQ), Port Multiplier switching, and AES-256 encryption. The card also includes both low-profile and full-height brackets for versatile installation options.
Ideal for game developers, video editors, and system integrators, the LRST9630-4IR ensures stable operation within an operating temperature range of 0°C to 50°C. With support for AHCI 1.0 and IDE programming interfaces, it offers broad compatibility with Windows, Linux, and other major operating systems. Backed by LR-LINK's commitment to quality, this adapter comes with a 2-year warranty and is built for long-term reliability in demanding computing environments.
Supports SATA 6Gbps interface for rapid data transfer rates.
Provides four internal SATA ports via SFF-8087 connector.
Supports RAID 0, 1, 10, and JBOD for flexible storage management.
Powered by Marvell 88SE9230 controller for stability.
Works with Windows, Linux, and various OS platforms.

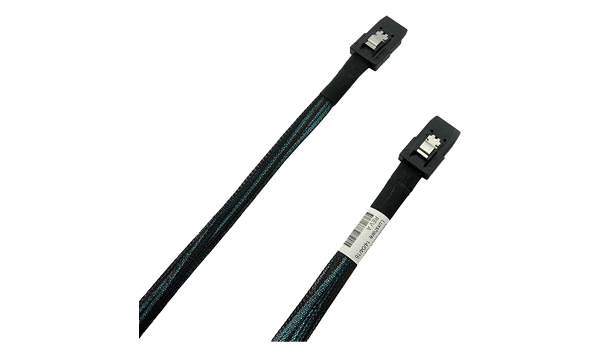

High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Host Interface | PCI Express 2.0 x4 |
|---|---|
| Drive Interface | SFF-8087 (Internal) |
| Number of Ports | 4 Internal SATA |
| Transfer Speed | 6.0 Gbps / 3.0 Gbps / 1.5 Gbps |
| Controller | Marvell 88SE9230 |
|---|---|
| RAID Levels | RAID 0, 1, 10, JBOD |
| SATA Specification | SATA 3.1 Compliant |
| Advanced Features | |
| PCIe Features |
| Dimensions | 116mm x 69mm |
|---|---|
| Weight | 50g |
| Bracket Type | Low-profile and Full-height (installed) |
| Power Supply | 3.3V ±9% |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -10°C to 65°C (14°F to 149°F) |
| Humidity | 0% – 90% |
| Warranty | 2 Years |
|---|---|
| Compliance | SATA 3.1 Specification |
