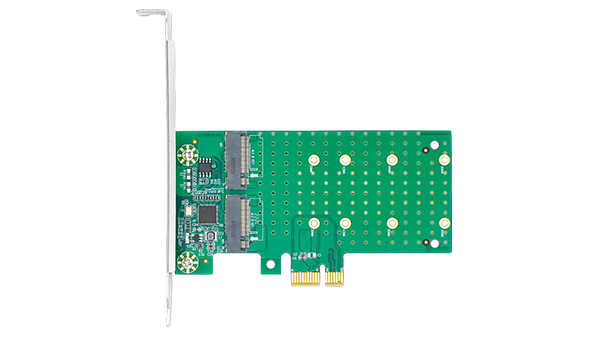

LRST9661-2IT 6Gb/s PCIe x1 to 2-Port M.2 SATA expansion card
LRST9661-2IT is dual SATA III (6 Gbps) to PCI Express Host Card with Serial ATA Advantage AHCI controller, bridges PCI Express to two ports of Serial ATA 6Gbps, enables Serial ATA PHY up to 6Gbps high speed interface, supports SRIS (Separate Reference Clock With Independent Spread) function.
• Compliant with Serial ATA Specification 3.0.
• Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
• Single virtual channel
• SSC support
• Serial ATA AHCI Spec. Rev.1.3
• Supports two M.2 SATA ports.
• ECRC and Advanced Error Reporting capability
• Support Native Command Queuing (NCQ).
• Support Port Multiplier
• Support Gen 1m and 2m SATA PHY
LR-LINk
Complete technical details for integration and deployment planning.
| Model | LRST9661-2IT |
|---|---|
| Number of Device | 2 internal |
| I/O Controller | ASMedia1061 |
| Bus Type | PCI Express |
| Compatible Device Type | M.2 SATA SSDs |
| Interface | M.2 SATA |
| Device Connector | 2*M.2 B-Key SATA Connectors |
|---|---|
| Host Connector | PCIe 2.0 x1 |
| Humidity | 0% – 90% |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 65°C (14°F to 149°F) |
| Dimension | 107mm*60mm |
|---|---|
| Product Weight | 46g |
| Warranty | 2 Years |
|---|
| Shipping (Package)Weight | 3.0oz [86 g] |
|---|
| Included in Package | 1 - PCI Express to M.2 SATA adapter |
|---|
