PCIe 5.0 NVMe expansion card with 4 MCIO 8i ports and flexible splitting modes for high-performance storage.

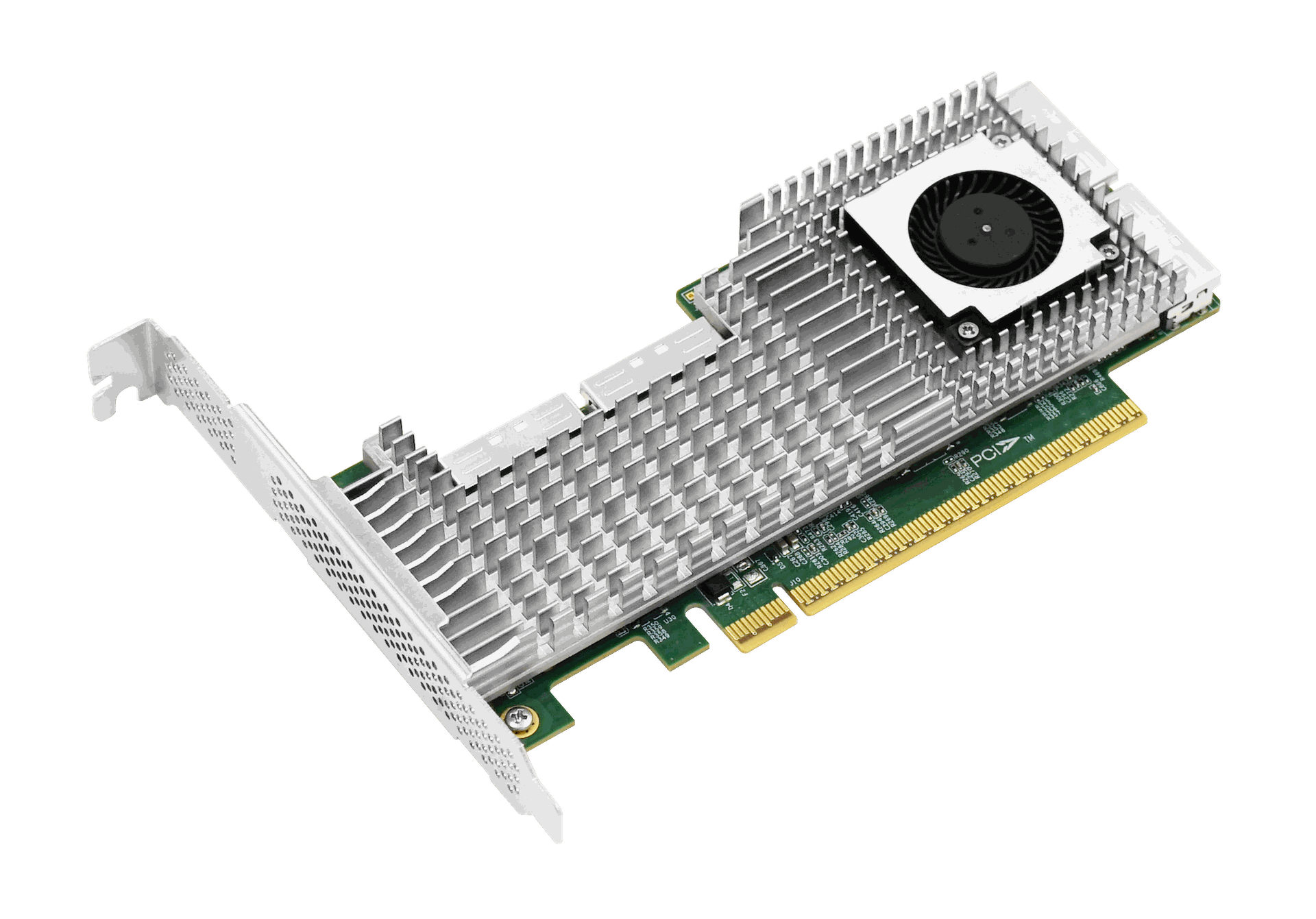

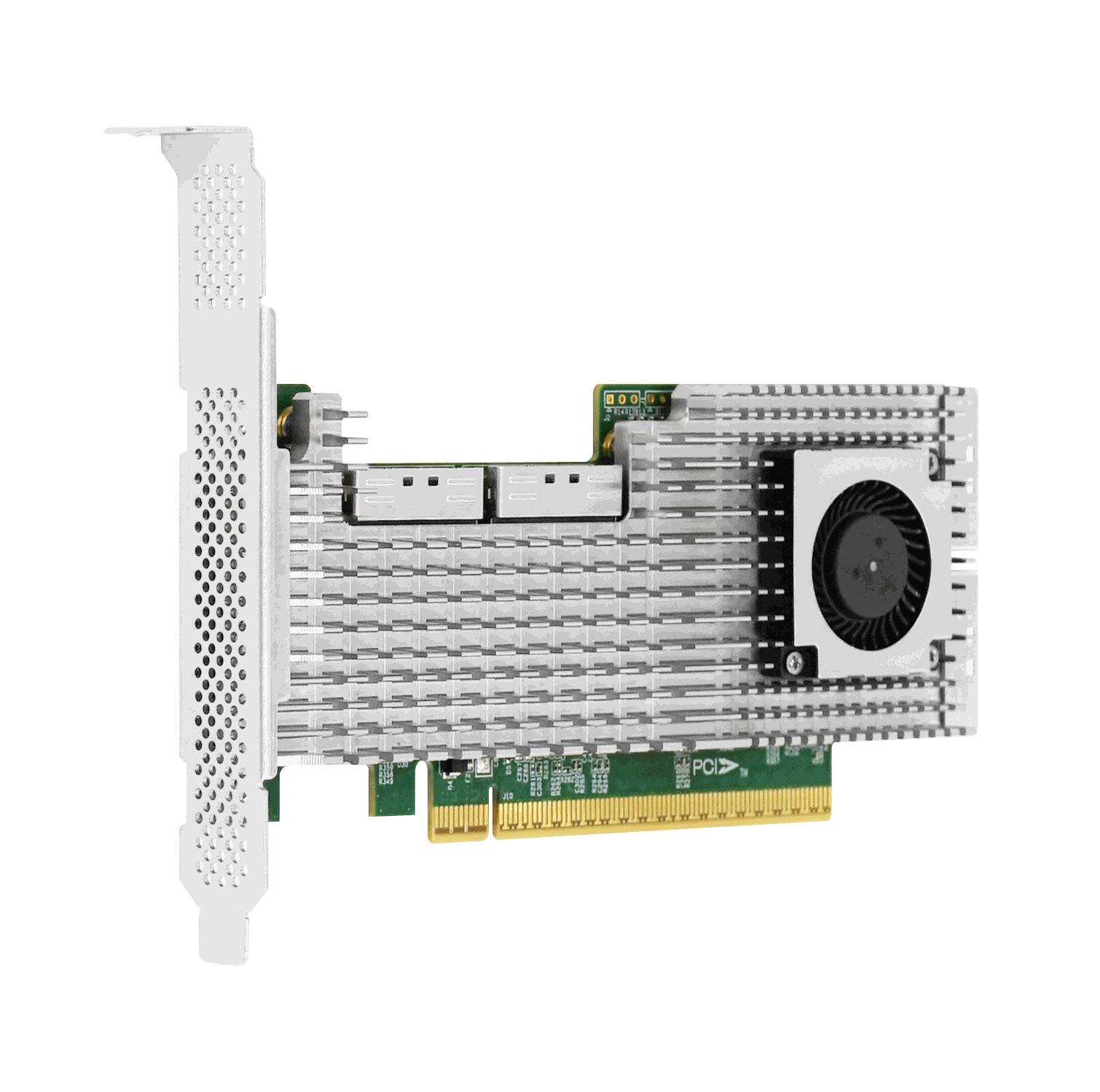

Linkreal presents the LRSV9500-4I, a robust PCIe 5.0 x16 NVMe expansion card engineered for extreme performance in modern data centers and AI/ML training clusters. Built on the reliable Broadcom PEX89048 host controller, this adapter delivers ultra-low latency and massive bandwidth required for next-generation storage architectures.
Featuring four MCIO 8i interfaces, the card supports up to eight SSDs in various form factors including M.2, U.2/U.3, and E3.S via cabling accessories. Its intelligent thermal design includes a temperature-controlled fan that activates only when necessary, ensuring efficient power consumption and silent operation during idle periods while maintaining stability under heavy loads.

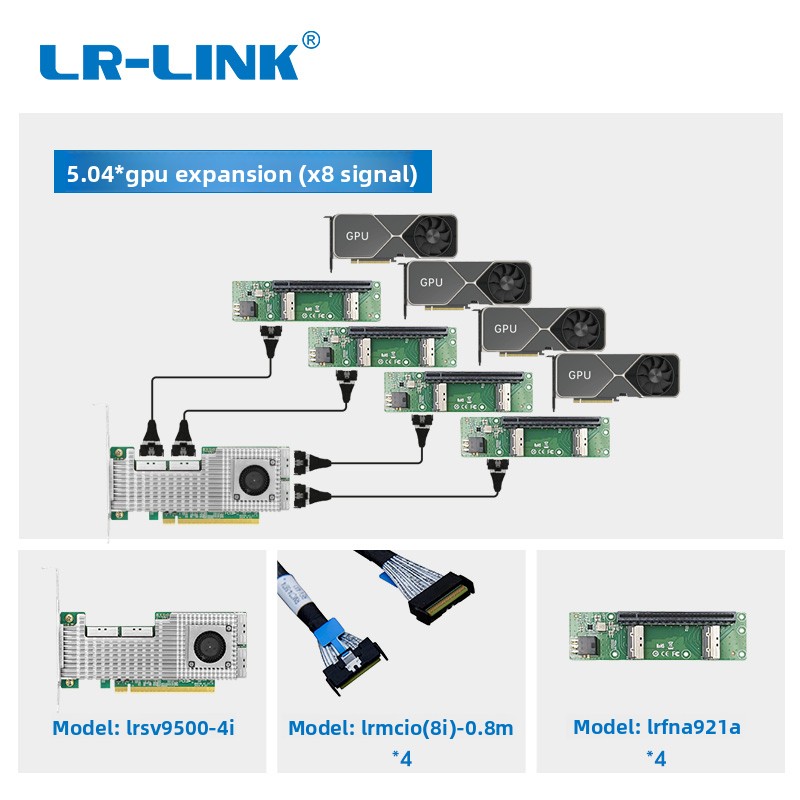

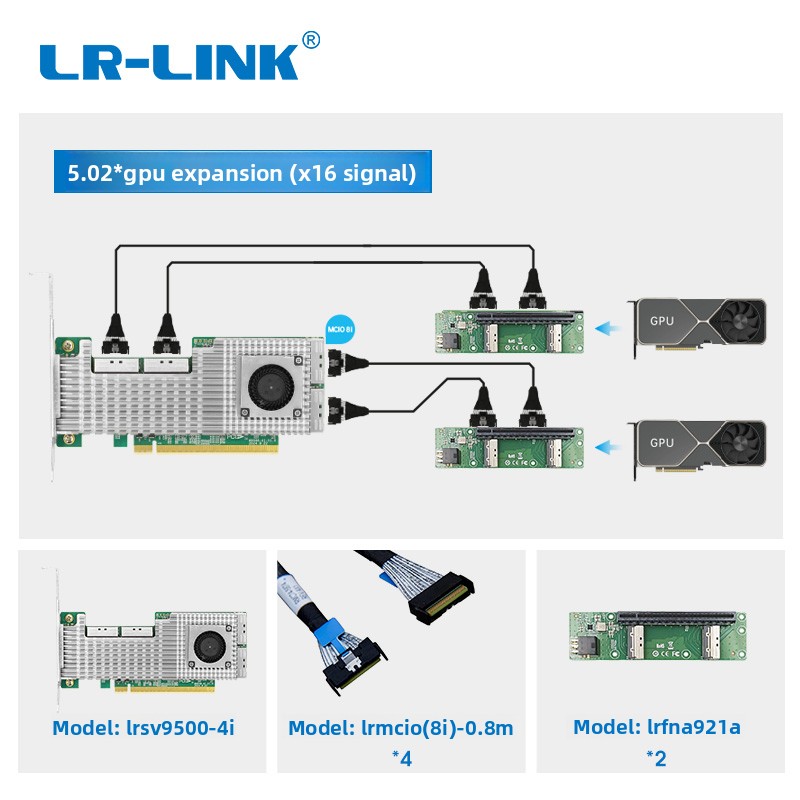

The LRSV9500-4I offers exceptional flexibility with three splitting modes: 2x16, 4x8, and 8x4. This allows system integrators to tailor the PCIe lane allocation to specific workload requirements, whether for high-bandwidth single-device access or multi-device parallel processing. Ideal for SSD performance testing, GPU expansion, and high-density storage solutions, it ensures accurate real-time data handling.
Ultra-high bandwidth with PCIe Gen 5.0 x16 interface for next-gen storage performance.
Supports 2x16, 4x8, and 8x4 splitting modes for optimal lane allocation.

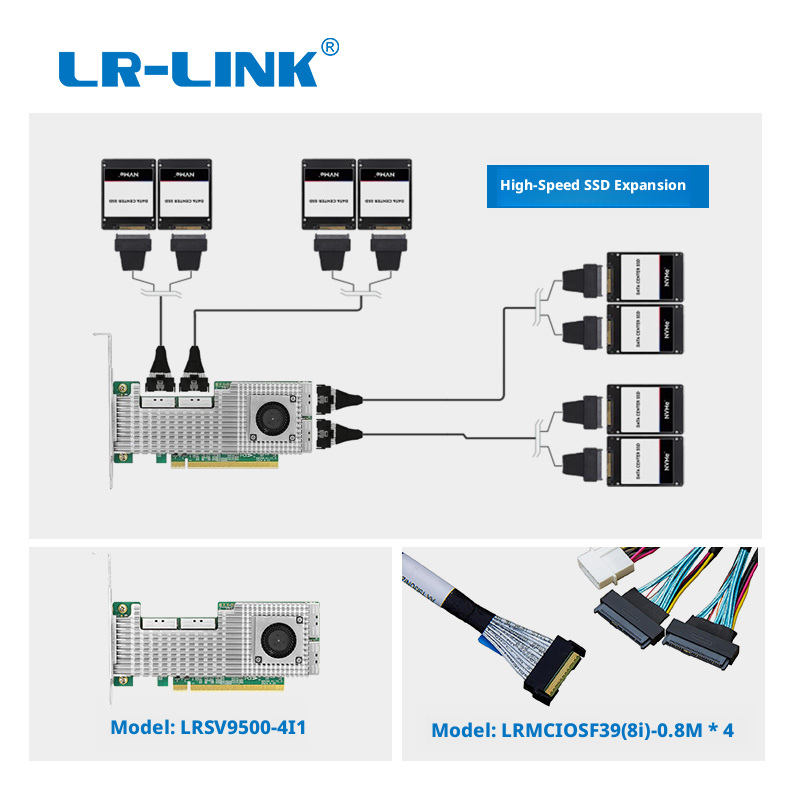

Connects up to 8 M.2, U.2/U.3, or E3.S SSDs simultaneously.
Temperature-controlled fan reduces power consumption and noise effectively.
Integrated NVMe hot-plug capability for easy maintenance and upgrades.
Powered by Broadcom PEX89048 for reliable high-speed data transfer.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| PCIe Version | PCIe 5.0 |
|---|---|
| Bus Width | x16 |
| Connector Type | MCIO 8i |
| Number of Connectors | 4 |
| Max Devices Supported | 8 |
| SSD Form Factors | M.2, U.2, U.3, E3.S |
| Hot-Plug Support | Yes |
| Controller | Broadcom PEX89048 |
|---|---|
| Splitting Modes | 2x16, 4x8, 8x4 |
| PCB Size | 68.6 x 155.69 mm |
|---|---|
| Bracket Height | Low Profile & Full Height |
| Cooling | Temperature-controlled fan |
| Operating Temperature | -10°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| Compliance | FCC, CE, RoHS |
|---|
