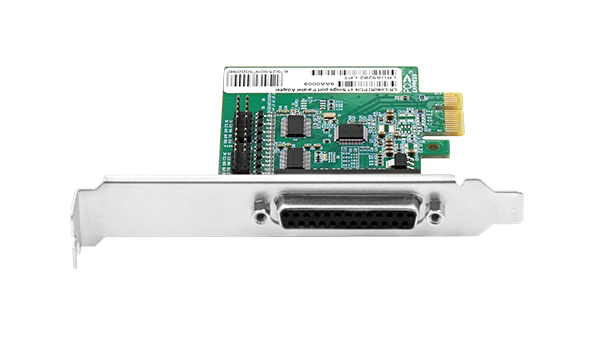

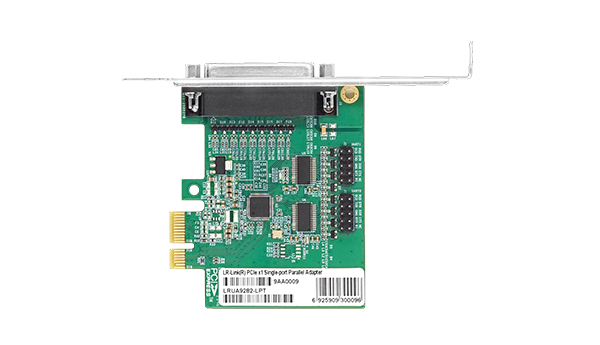

PCIe x1 single-port parallel adapter based on CH382L chip.
The LRUA9282-LPT is a PCIe X1 single-port parallel adapter based on the CH382L chip. The adapter adopts a single parallel port design and supports plug-and-play without any driver.
It has the characteristics of strong compatibility, compact appearance, and low power consumption. It is suitable for various scenarios that require high-speed parallel port data transmission, such as printers, scanners, external storage devices, etc.
Providing users with a convenient and efficient data transmission experience.
Comply with IEEE1284 parallel port protocol.
Supports domestically produced CPUs such as Feiteng and Kirin.
Miniature design, easy to install.
Supports two-way data transmission and supports a maximum transmission speed of 1MB/s.
Complete technical details for integration and deployment planning.
| Model | LRUA9282-LPT |
|---|---|
| Controller | CH382L |
| Bracket Height | Low Profile & Full Height |
| Power (max) | 500mW |
| Bus Interface | PCIe1.1X1 |
| Data rate per port (max) | 1MB/s |
| Connector | IEEE1284 parallel port/printing port |
| Power Supply | PCIe |
| ESD | Contact discharge ±8KV |
| Windows | 7/8/8.1/10/11 |
|---|---|
| Windows Server | 2012/2016/2019/2022 |
| Tongxin UOS | 201060 (AMD), 201060 (ARM) |
| Galaxy Unicorn KOS | 2303 (ARM), 2303 (AMD) |
| Operating Temperature | 0℃ to 80℃ (32℉ to 176℉) |
|---|---|
| Storage Temperature | -20℃ to 85℃ (-4℉ to 185℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
| PCB size (unit:mm) | 80*68.9*1.6mm |
|---|---|
| Package size (unit:mm) | 179*150*30mm |
