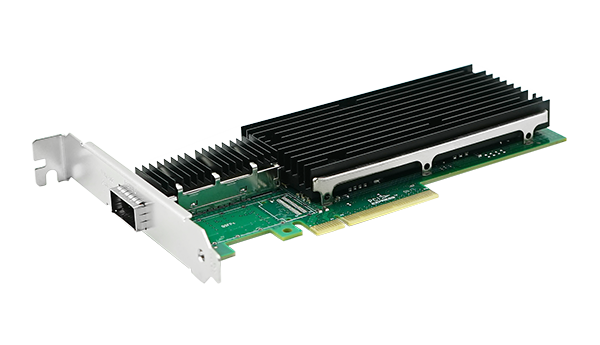

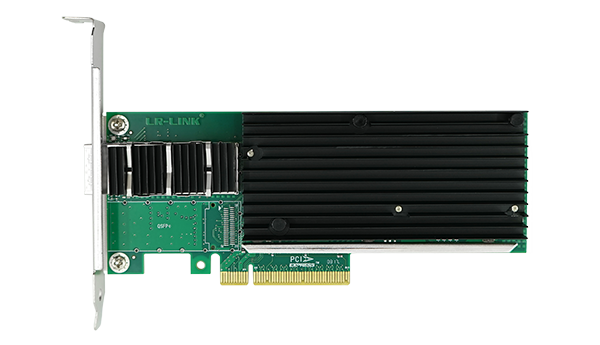

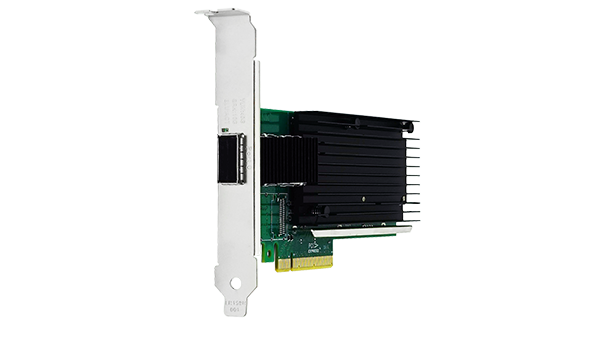

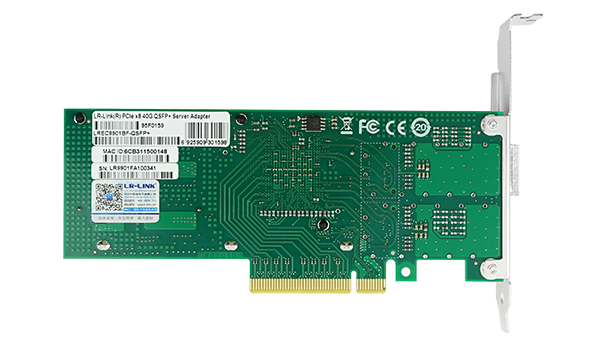

PCIe v3.0 x8 Single-port 40 Gigabit Server Ethernet Adapter (Intel XL710)
LREC9901BF-QSFP+ is a PCIe x8 40Gbps Single-Port Fiber Sever Ethernet Adapter based on Intel XL710 chipset, and is compatible with PCIe x16 slot. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.
The product of this seris is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
LR-LINK OCP3.0 Dual-port 100G QSFP28 Ethernet Network Adapter: LRES3026PF-OCP
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Jumbo Frame Support | Up to 9.5 KB |
|---|---|
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Network Virtualization | VXLAN, MACinUDP, NVGRE, IPinGRE |
| LED Indicators OPERATION | 40Gbps:Yellow LINK on; Blue ACTblink |
| Operating System Support | Windows Server2016 R2/2016/2012 R2/2012/2008 R2/2008 |
Firmware updates, setup guides and documentation to get started quickly.
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
