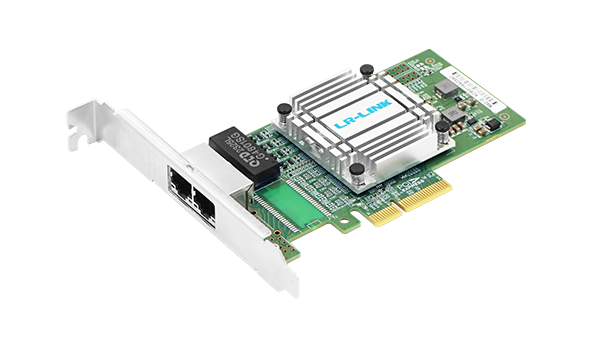

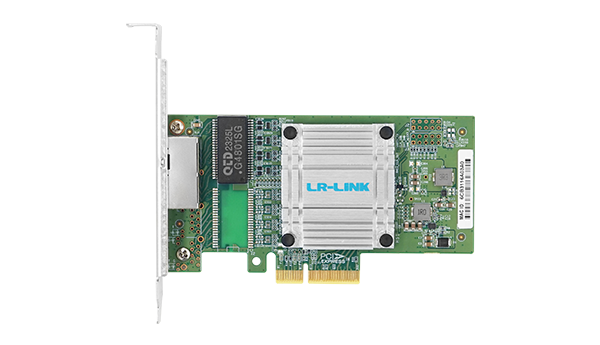

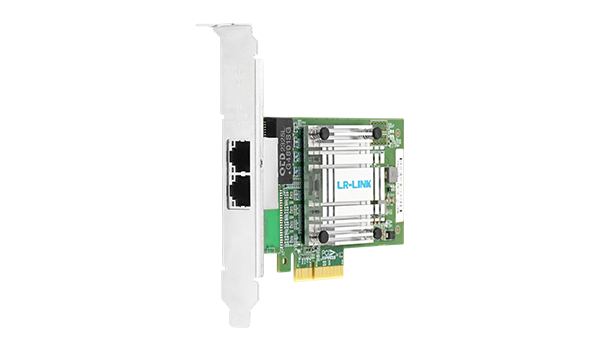

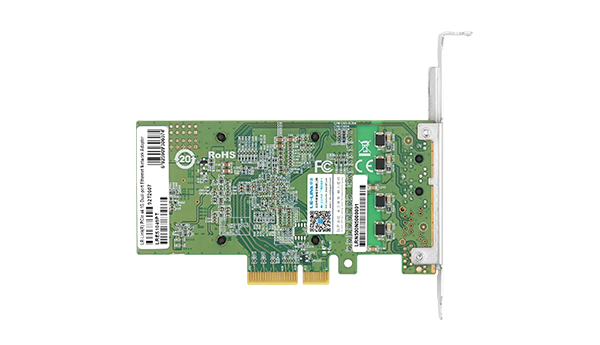

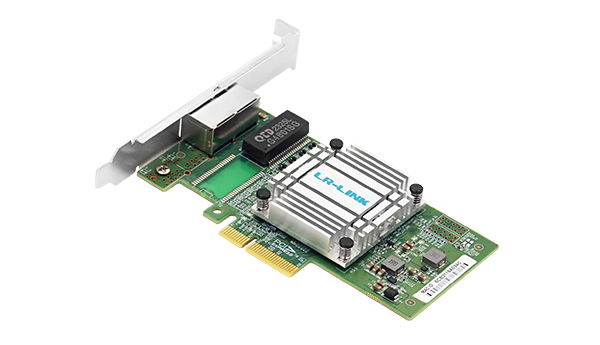

Domestic dual-port Gigabit PCIe 2.0 x4 network adapter based on Mucse RNP N500L-AM2 for secure data centers.
LR-LINK presents the LRES1049PT, a robust dual-port Gigabit Ethernet network adapter engineered for high reliability and security. Based on the domestically developed Mucse RNP N500L-AM2 controller, this solution ensures independent controllability and meets strict national information security requirements. It utilizes the PCIe 2.0 x4 interface to provide stable, low-latency data transmission suitable for critical infrastructure.
This network adapter supports multiple speeds including 10/100/1000Mbps and features advanced capabilities such as IEEE 1588 PTP clock synchronization, SR-IOV, and DPDK support. The hardware acceleration and cross-detection features ensure efficient network operation, while the wide operating temperature range of -40℃ to 85℃ makes it perfect for harsh industrial and outdoor environments.
Ideal for use in servers, network security equipment, and data centers, the LRES1049PT offers comprehensive OS support including Deepin, Kylin, Ubuntu, and CentOS. With its compact form factor available in both low-profile and full-height brackets, it integrates seamlessly into various system configurations while providing a stable and secure networking experience.
Two Gigabit RJ45 ports for high-density network connections.
Built on Mucse RNP N500L-AM2 for independent controllability.
Operates reliably from -40℃ to 85℃ in harsh environments.
Supports IEEE 1588 PTP for precise clock synchronization.
High-bandwidth PCIe 2.0 x4 interface for low latency.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe 2.0 x4 |
|---|---|
| Connector | 2x RJ45 |
| Data Rate per Port | 10/100/1000 Mbps |
| Cable Medium | Copper |
| Controller | Mucse RNP N500L-AM2 |
|---|---|
| Architecture | Purely Domestic Solution |
| IEEE 1588 PTP | Yes |
|---|---|
| SR-IOV | Yes |
| PXE | Yes |
| DPDK | Yes |
| WoL | Yes |
| Jumbo Frames | Yes (Max 9.5KB) |
| RSS Queues | 8 per port |
| MDI/MDI-X | Auto-Correction |
| UEFI Support | Yes |
| Bracket Height | Low Profile & Full Height |
|---|---|
| PCB Size | 125 x 68.8 x 1.6 mm |
| Power (Min) | 1.836 W |
| Power (Max) | 3.384 W |
| Operating Temperature | -40℃ to 85℃ |
|---|---|
| Storage Temperature | -40℃ to 85℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Standards | FCC, CE, RoHS |
|---|---|
| Protocols | IEEE 802.3ab, 802.3u, 802.1Q, 802.3az |
