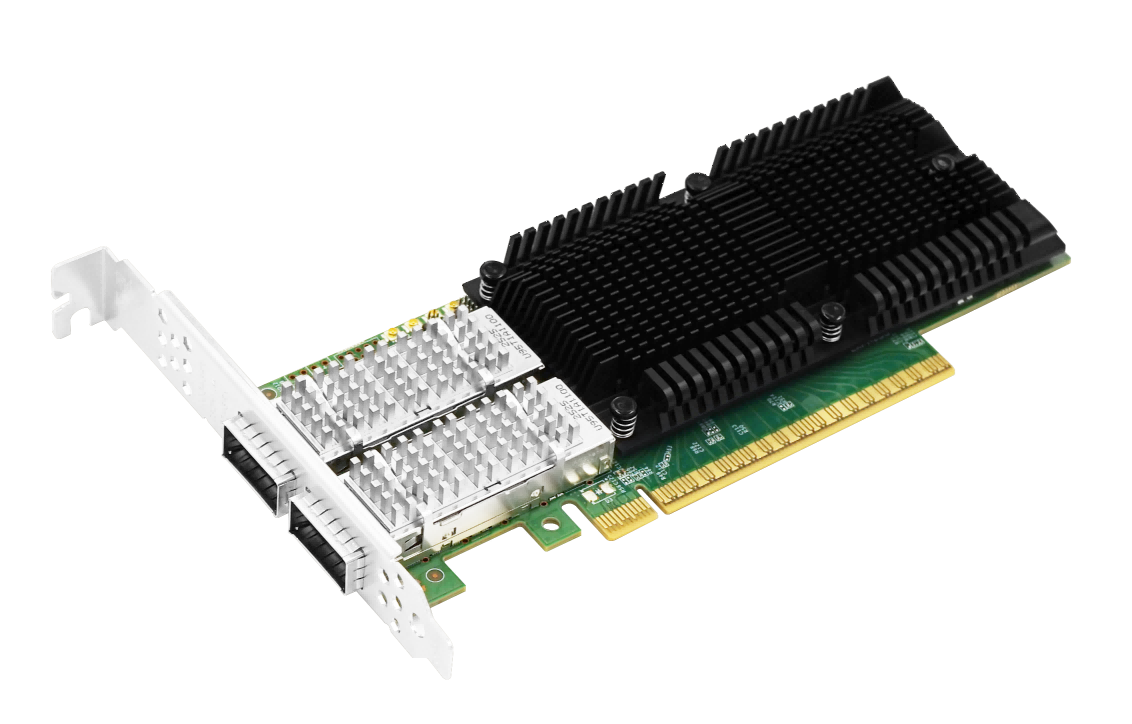

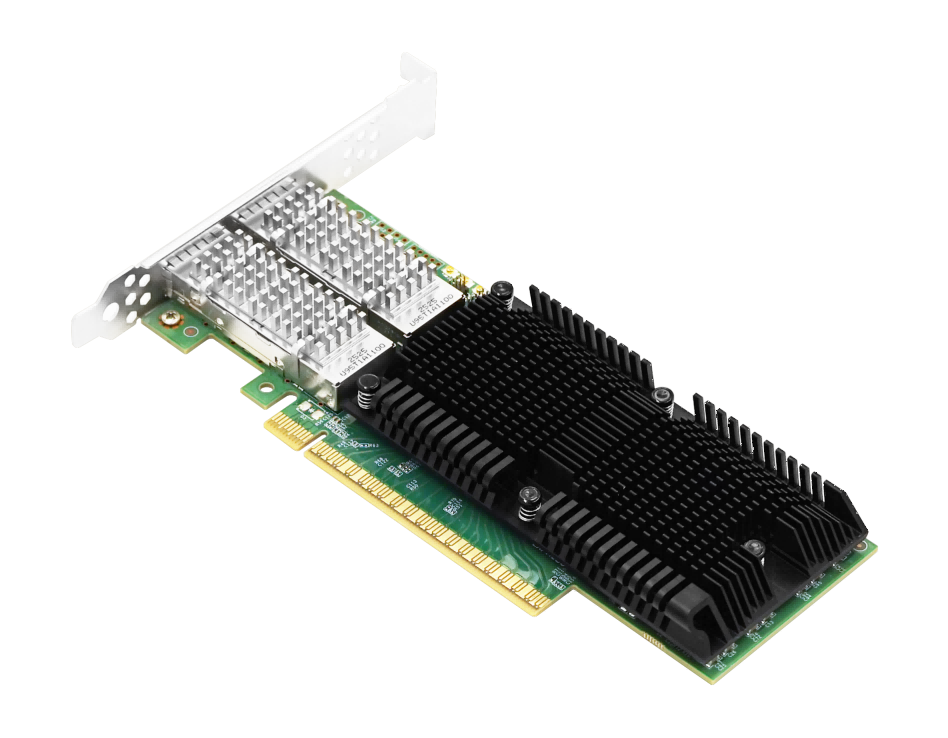

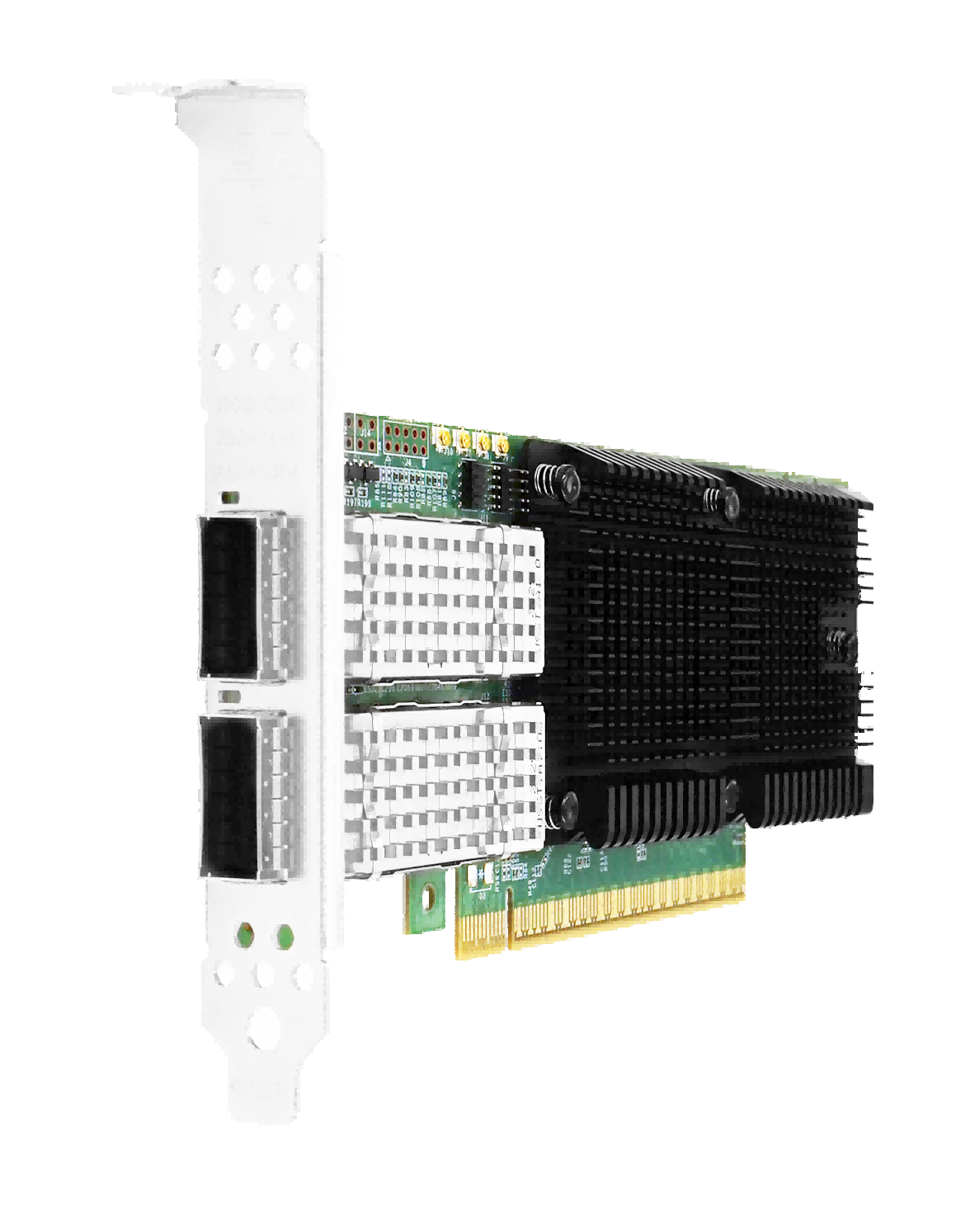

Dual-port 200GbE PCIe 5.0 network adapter based on Intel E830 with flexible port configuration.
At LR-LINK, we engineer the LRES1080PF-2QSFP56 to meet the escalating bandwidth demands of modern AI clusters and cloud data centers. Built on the robust Intel E830 chipset, this PCIe 5.0 x8 (or PCIe 4.0 x16) dual-port adapter delivers exceptional throughput up to 200GbE, ensuring minimal latency for critical workloads.
Our solution offers unparalleled flexibility through Ethernet Port Configuration Tool (EPCT) support, allowing users to dynamically configure ports into 2x100G, 1x200G, 4x50G, or 8x25G setups. This adaptability makes it ideal for virtualized environments, large-scale data transfers, and high-performance computing applications where scalability is paramount.
We prioritize energy efficiency without compromising performance. The LRES1080PF-2QSFP56 features a low-power design that reduces system energy consumption and operational costs, addressing the growing challenges of power density in next-generation server racks. Fully compliant with IEEE 1588v2, PTP, and CNSA 1.0 standards, it ensures precise synchronization and security for enterprise-grade deployments.
Delivers up to 200GbE speeds using Intel E830 controller for AI and cloud workloads.
Supports multiple port configurations including 200G, 100G, 50G, and 25G via EPCT.
Optimized low-power design reduces energy consumption and cooling costs in data centers.
Full support for IEEE 1588v2 and PTP for time-sensitive networking applications.
Compliant with CNSA 1.0 standards ensuring secure and reliable network operations.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Host Connector | PCIe 4.0 x16 or PCIe 5.0 x8 |
|---|---|
| Connectors | 2 QSFP56 |
| Link Speed | 25/50/100/200 Gbps |
| Supported Physical Layer Interfaces | |
| Port Configuration | 2x100G, 1x200G, 4x50G, 2x50G, 8x25G |
| Controller | Intel E830 |
|---|---|
| Adapter Type | PCIe NIC |
| Advanced Features |
| Form Factor | HHHL |
|---|---|
| Product Size | 170 x 68.74 mm |
| Package Size | 250 x 170 x 32 mm |
| LED Indicators | Color/Behavior (Off/Amber/Green) |
| Power Consumption (DAC) | 12.8W (Max) |
| Power Consumption (Optical) | 16.2W (Max) |
| Operating Temperature | -10°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 90% non-condensing at 35°C |
| Certifications | FCC, CE, RoHS |
|---|---|
| Protocol Support | |
| Jumbo Frames | 9.7KB |
