Quad-port Gigabit Ethernet PoE+ frame grabber based on Intel I350 for industrial vision and surveillance.

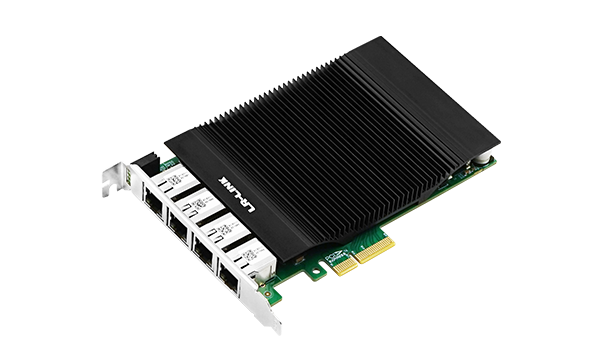

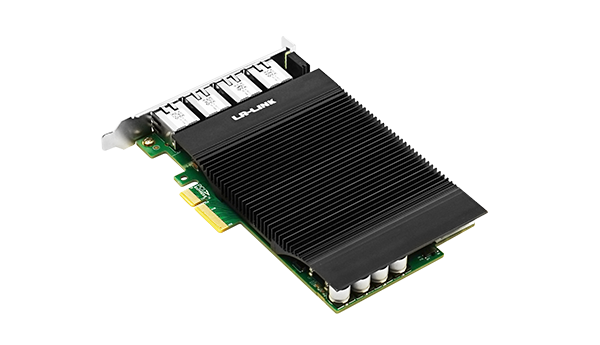

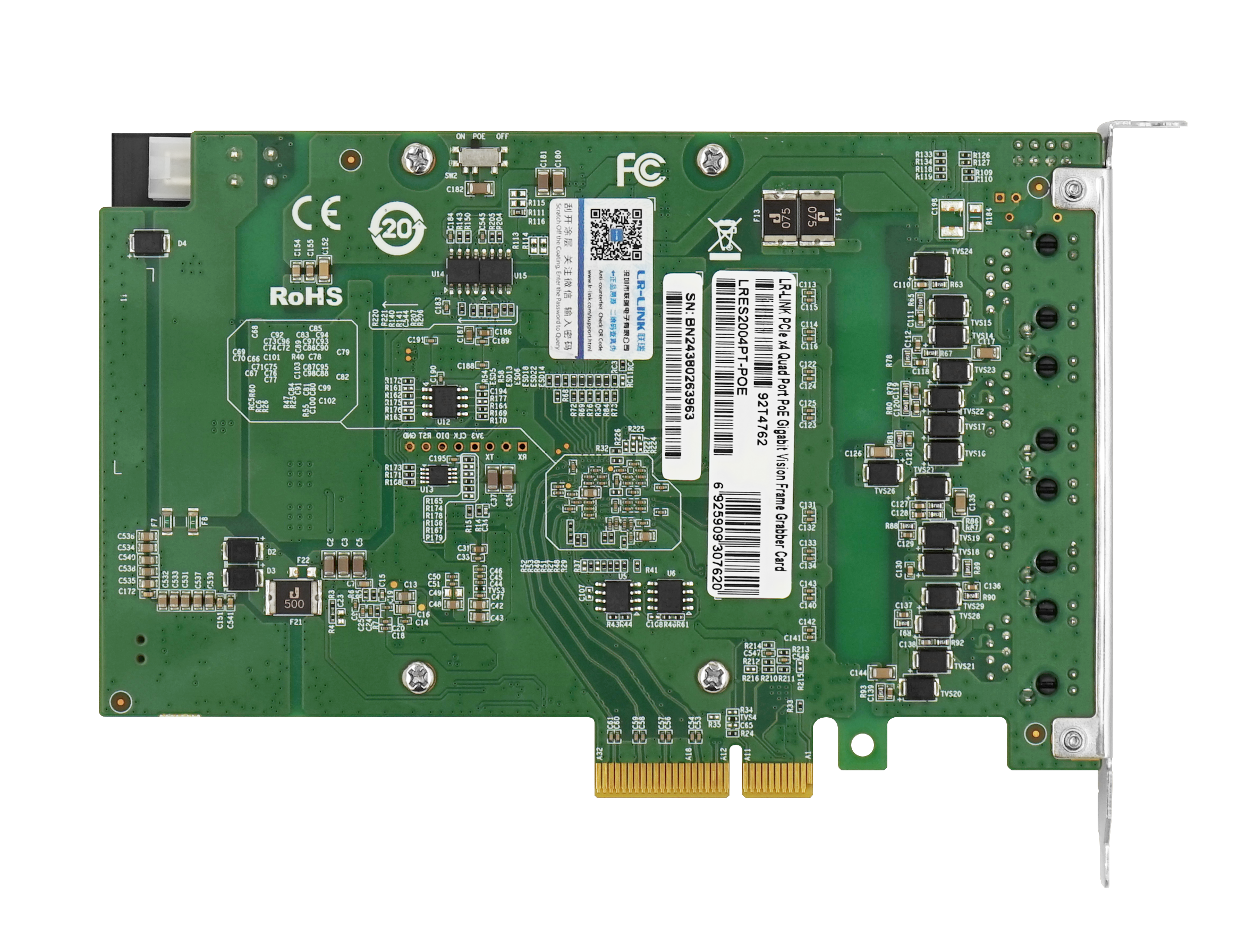

Linkreal presents the LRES2004PT-POE, a specialized quad-port Gigabit Ethernet PCIe Gen2 x4 PoE+ image acquisition card built on the robust Intel I350 controller. This adapter delivers four independent RJ45 interfaces, each capable of 1Gbps transmission speed and providing up to 30W of power per port under the IEEE 802.3at standard. With a total power budget of 90W, it efficiently powers connected devices such as industrial cameras, surveillance units, and sensors without requiring separate power supplies.
Engineered for reliability in demanding environments, each PoE port integrates a recoverable eFuse protection mechanism against overcurrent, short-circuits, and faults. The card supports cold-start PoE and includes programmable management tools for real-time monitoring and power control. Advanced features like Jumbo Frame support (up to 9.2KB), 1588 PTP synchronization, and multi-queue parallel processing ensure low latency and high throughput for critical applications.
Ideal for machine vision, intelligent surveillance, industrial automation, and traffic monitoring, this frame grabber combines high-speed data transfer with convenient power delivery. Its compact form factor fits standard PCIe slots while offering comprehensive ESD (8KV) and surge protection. Linkreal's solution simplifies system maintenance and enhances stability for professional imaging and networking setups.

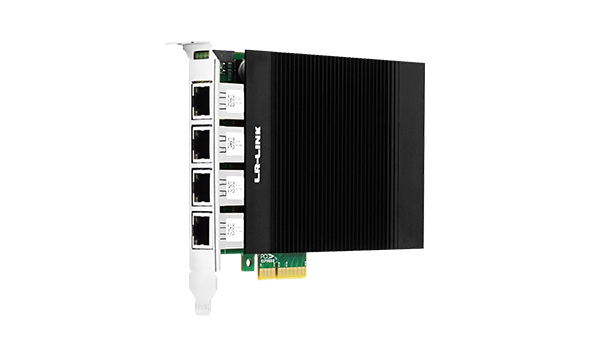

Four independent 1Gbps RJ45 ports for high-bandwidth data acquisition.
Delivers up to 30W per port via IEEE 802.3at standard for connected devices.
Built on reliable Intel I350 chipset for low latency and high performance.
Features recoverable eFuse protection and 8KV ESD resistance for stability.
Optimized for machine vision with Jumbo Frame and 1588 PTP support.
Complete technical details for integration and deployment planning.
| Host Connector | PCIe Gen2 x4 |
|---|---|
| Ethernet Ports | 4x RJ45 |
| Data Rate | 10/100/1000Mbps |
| Protocol Support | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3at |
| Controller | Intel I350 |
|---|---|
| Advanced Features |
| PoE Standard | IEEE 802.3at (PoE+) |
|---|---|
| Power Output | Up to 30W per port / 90W total |

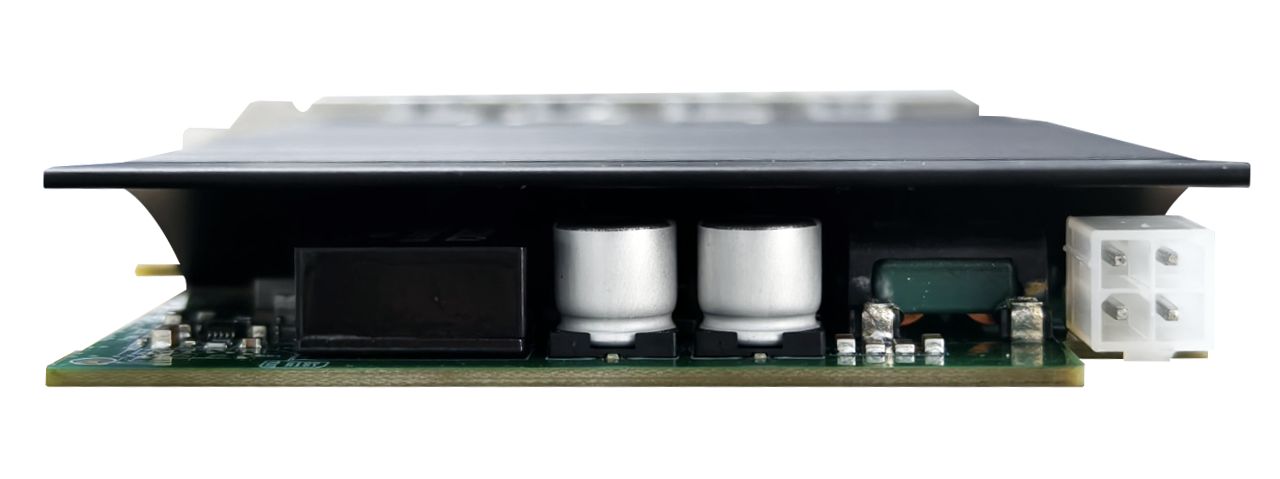

| Input Power | 12V from PCIe slot or ATX 2*2 Jack |
| Protection | Recoverable eFuse, ESD 8KV, Surge 4KV |
| PCB Size | 156.7 x 104.4 mm |
|---|---|
| Package Size | 250 x 170 x 32 mm |
| LED Indicators | Link Green/Amber, Activity Green |
| Operating Temperature | 0°C to 50°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| Compliance | FCC, CE, RoHS |
|---|---|
| OS Support | Windows, Linux |
