Dual-port 10G PoE+ Ethernet frame grabber with Intel chipset for industrial visual inspection.

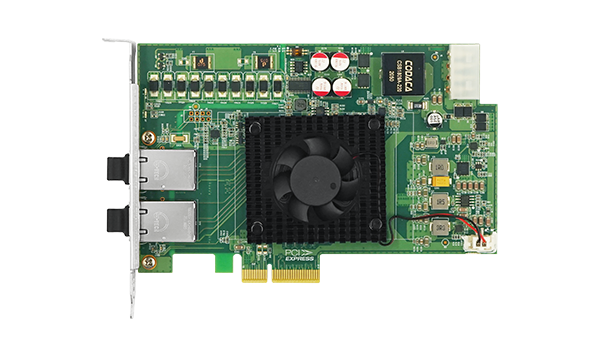

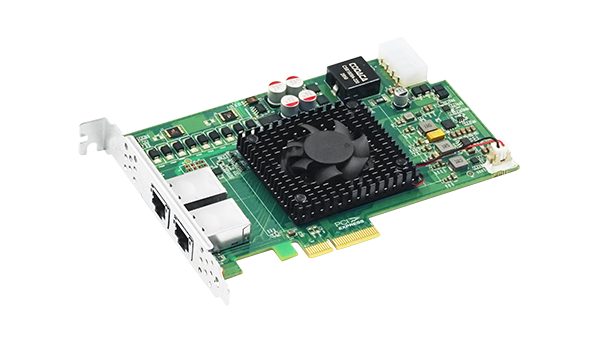

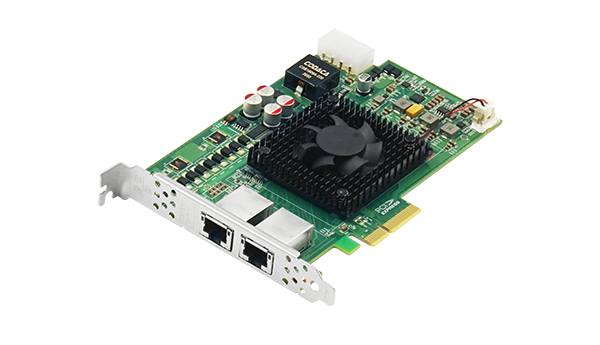

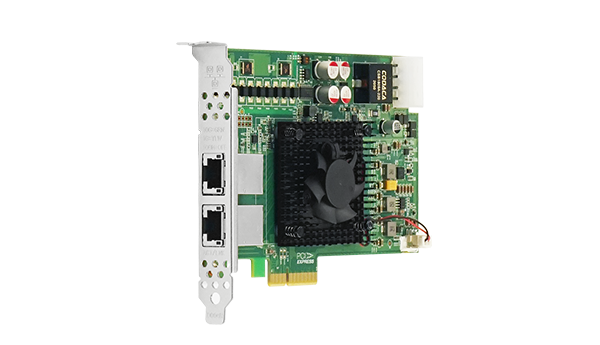

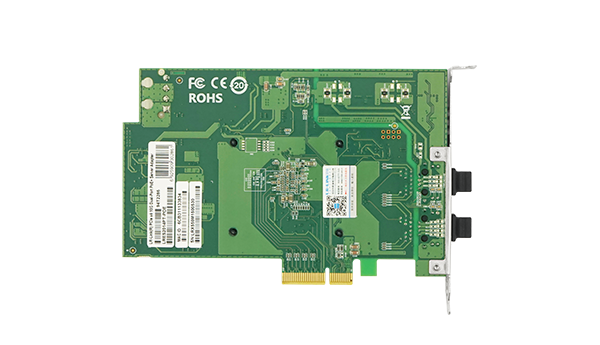

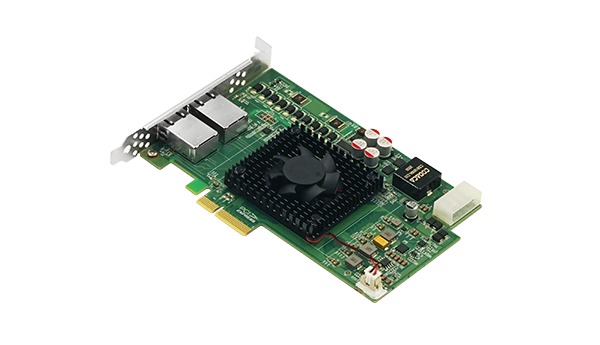

LR-LINK presents the LRES2014PT-POE, a specialized dual-port copper 10G Ethernet PCIe x4 adapter engineered for industrial visual inspection and data acquisition. Independently developed by our R&D team using Intel master control schemes, this card ensures robust performance in server and equipment environments requiring high-speed image capture.
This network interface card supports IEEE 802.3at PoE+ standards, delivering up to 30W of power per port to connected devices such as cameras and sensors. It features adaptive power output classes, independent PoE switching, and comprehensive surge protection, ensuring reliable operation even in harsh industrial settings with poor heat dissipation.
Designed for versatility, the LRES2014PT-POE operates at speeds ranging from 100Mbps to 10Gbps over standard Cat5e or Cat6 cabling. With support for Jumbo Frames, DPDK, and SR-IOV, it optimizes network efficiency and virtualization capabilities. The card includes efficient cooling solutions, including a long-life fan and large heatsink, guaranteeing stable, continuous operation for extended periods.
Supports up to 10Gbps data rate over copper cables for rapid image acquisition.
Delivers up to 30W PoE+ per port to power connected industrial cameras and devices.
Robust design with enhanced cooling and surge protection for harsh environments.
Built on reliable Intel controller technology for stable network performance.
Dual RJ45 ports compatible with Cat5e/6/7 cables for flexible deployment.
Optimized for machine vision servers and visual inspection applications.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v3.0 x4 (compatible with x8, x16) |
|---|---|
| Connector | 2x 10G RJ45 |
| Transmission Medium | Copper (Cat 5E/6/7) |
| Data Rate | 100/1000/2500/5000/10000 Mbps |
| Controller | Intel Chip |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power Output | 30W / port (Class 0-4) |
| PoE Voltage | 48V |
| Advanced Features | |
| Standards Compliant | IEEE 802.3an, 802.3ab, 802.3u, 802.3z, 802.1Q VLAN, 802.3x, 1588, 802.3az EEE |
| Size | 159 x 120 x 12 mm |
|---|---|
| Weight | * g |
| Baffle Height | Full-height bracket |
| Power Input | +12V ~ +24V DC (4-Pin) |
| Power Consumption | 8.0W |
| Cooling | Fan (4000 RPM, 50,000 hours life) + Heatsink |
| Operating Temperature | 0℃ to 55℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Windows | 7/8/8.1/10, Server 2008 R2/2012 R2/2016 R2/2019 R2 |
|---|---|
| Linux | Kernel 2.6.x/3.x/4.x+, CentOS/RHEL 6.5/7.x+, Ubuntu 14.x+ |
| Virtualization | VMware ESX/ESXi 4.x/5.x/6.x+ |
| Compliance | FCC, CE, RoHS |
|---|
