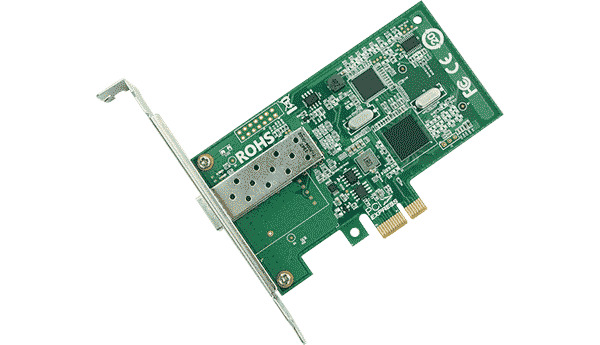

PCIe 2.0 x1 single-port 1G SFP server adapter based on Net-swift WX1860AL1 with SR-IOV and 1588 PTP support.
Linkreal presents the LRES2026PF-SFP, a robust PCIe 2.0 x1 single-port Gigabit Ethernet network adapter designed for modern data centers and server environments. Built on the reliable Net-swift WX1860AL1 chipset, this adapter ensures high performance and stability while meeting strict national security strategies through its 100% localized components.
This network interface card supports advanced I/O virtualization via SR-IOV, significantly improving application performance for virtualized workloads. Additionally, it integrates IEEE 1588 Precision Time Protocol (PTP) to achieve high-precision clock synchronization, making it ideal for industrial automation and telecom applications requiring tight timing accuracy.
The LRES2026PF-SFP offers comprehensive protocol support including PXE/UEFI boot, VLAN tagging, and Energy Efficient Ethernet (IEEE 802.3az). Its flexible bracket design (Full/Half Height) and wide operating temperature range ensure compatibility and reliability across diverse deployment scenarios, providing users with a secure and efficient networking solution.
100% localized components ensure product reliability and safety for secure data center deployments.
Supports SR-IOV technology to significantly improve application performance in virtualized environments.
Integrates IEEE 1588 PTP for high-precision clock synchronization required by industrial and telecom apps.
Available with Full Height or Half Height brackets to fit various server chassis configurations.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Model | LRES2026PF-SFP |
|---|---|
| Bus Type | PCIe v2.0 (5GT/s) x1 |
| Connector | 1*SFP |
| Link Speed | 100/1000Mbps |
| Cable Medium | Fiber |
| Transmission Standards | 1000Base-SX, 1000Base-LX |
| Main Control Chip | WX1860AL1 |
|---|
| SR-IOV | Yes |
|---|---|
| 1588 PTP | Yes |
| PXE/UEFI | Yes |
| WoL | No |
| Jumbo Frames | 9.2KB |
| Localization | 100% Localization |
| IEEE 802.1Qbg | Virtual Ethernet Bridging |
|---|---|
| IEEE 802.1Qbb | Priority Flow Control |
| IEEE 802.1Qaz | Enhanced Transmission Selection |
| IEEE 802.1as | TimeSync |
| IEEE 802.1Qau | Congestion Notification |
| IEEE 802.1q | VLAN |
| IEEE 802.3az | Energy Efficient Ethernet |
| IEEE 1588 | Precision Time Protocol |
| Bracket Height | Full Height / Half Height |
|---|---|
| PCB Size | 110*68*1.6 mm |
| Package Size | 179*150*30 mm |
| Power Supply | PCIe |
| Min Power | 1.068W |
| Max Power | 1.752W |
| Operating Temperature | -10°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum: 90% non-condensing at 35°C |
| Certification | FCC, CE, RoHS |
|---|
