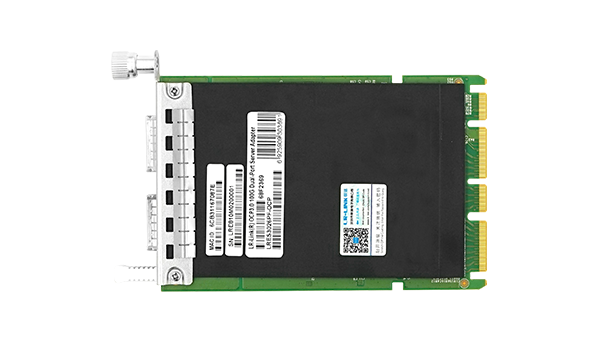

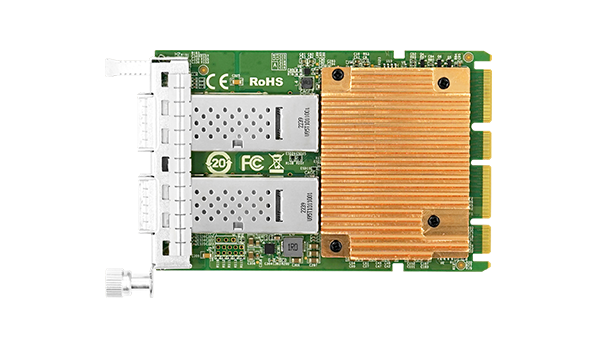

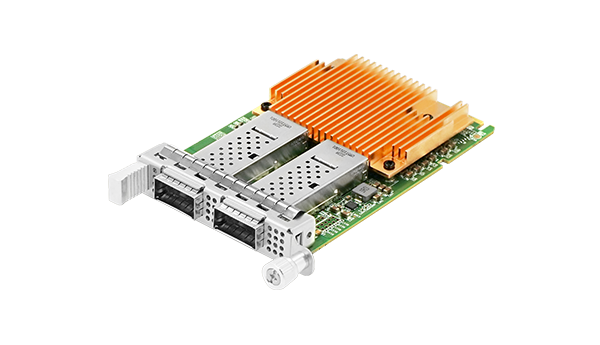

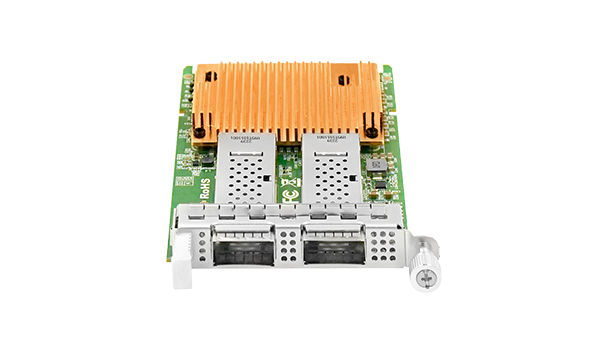

OCP 3.0 Dual-port 100GbE PCIe 4.0 x16 Network Adapter with Intel E810 controller.
LR-LINK presents the LRES3026PF-OCP, an independently developed dual-port 100GbE PCIe Ethernet adapter built on the robust Intel E810-CAM2 controller. Designed in strict compliance with the OCP 3.0 Small Form Factor (SFF) specification, this adapter delivers exceptional throughput with two QSFP28 optical ports supporting up to 200Gbps total bandwidth.
This network interface card excels in high-performance computing scenarios by supporting Application Device Queues (ADQ) for improved QoS and Dynamic Device Personalization (DDP) for enhanced packet classification. It also enables low-latency, CPU-bypassing data transfers through comprehensive RDMA support, including RoCEv2 and iWARP protocols.
Engineered for reliability and ease of maintenance, the LRES3026PF-OCP features hot-plug support, NCSI management, and SMBus temperature monitoring. It is optimized for demanding applications such as cloud networking, storage systems, AI/ML workloads, data analytics, and High-Performance Computing (HPC) environments.
Dual-port 100GbE connectivity with PCIe 4.0 x16 interface for maximum bandwidth.
Supports RDMA RoCEv2 and iWARP for CPU-bypassing, low-latency data transfers.
Compliant with OCP 3.0 SFF specification for seamless integration in modern servers.
Enables efficient virtualization with full SR-IOV support for multiple VMs.
Features hot-plug support and NCSI for simplified maintenance and uptime.
Ideal for AI/ML workloads, HPC, and cloud networking with ADQ and DDP.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Model | LRES3026PF-OCP |
|---|---|
| Adapter Type | OCP 3.0 |
| Form Factor | SFF |
| Host Connector | PCIe 4.0 x16 |
| Connectors | QSFP28 |
| Port Configuration | Dual-port |
| Supported Physical Layer Interfaces | |
| Link Speed | 100/50/25/10Gbps |
| Controller | Intel E810-CAM2 |
|---|---|
| Power Consumption | 31.24W (Max) |
| Jumbo Frames | 9.7KB |
| Protocol Support |
| RDMA | Yes (RoCEv2/iWARP) |
|---|---|
| SR-IOV | Yes |
| NCSI | Yes |
| SMbus Monitor | Yes (Temperature) |
| ScanChain | Yes |
| Hot Swap | Yes |
| PXE/UEFI | Yes |
| WoL | Yes |
| 1588 PTP | Yes |
| FRU | Yes |
| PCB Size | 115*76mm |
|---|---|
| Package Size | 179*150*30mm |
| LED Indicators | Off (No link), Amber (Link at lower speed), Green (Link at 100Gbps), Green blink (Link up/traffic) |
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35°C |
| Certification | FCC, CE, RoHS |
|---|---|
| Supported Systems |
