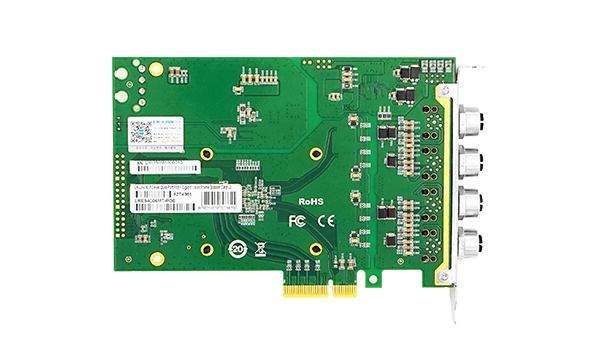

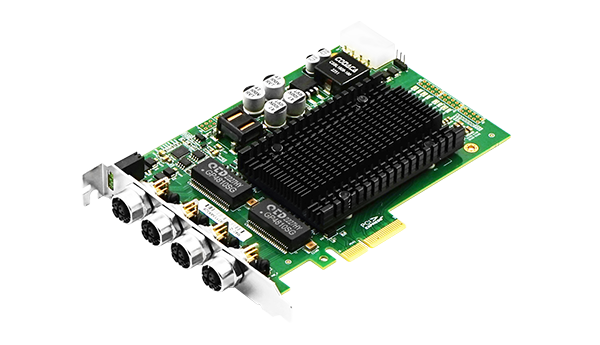

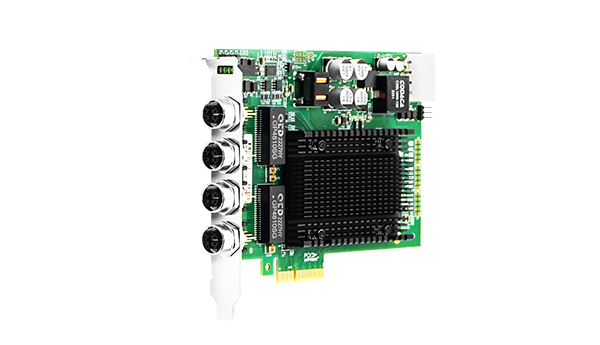

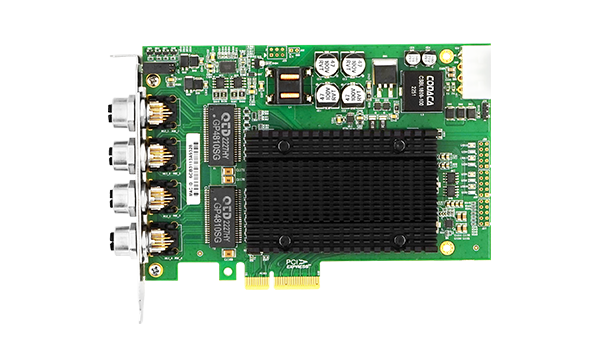

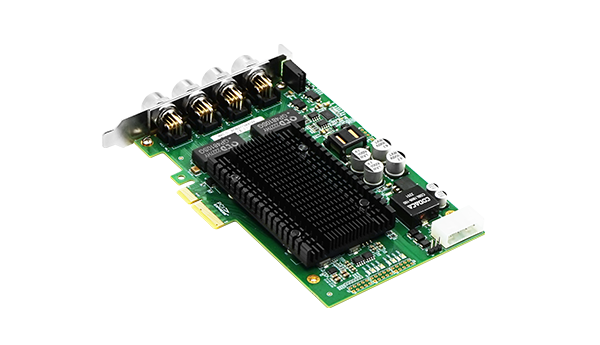

PCIe x4 Quad-port PoE+ M12 Gigabit Vision Frame Grabber Card (Intel I350 )
LRES4006MT-POE is a PCI Express v2.1 x4 four-port M12 (aviation interface) Gigabit PoE+ Ethernet image acquisition card developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of the Intel I350 master control solution. It is also compatible with PCIe x8, x16 channels. The LRES4006MT-POE design is mainly used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, field detection, industrial monitoring, etc., and is also suitable for ordinary servers.
LRES4006MT-POE is developed based on the Intel four-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, which can simultaneously allow four ports to fully The duplex working mode works to adapt to high-performance network communication. It can expand bandwidth through link aggregation and save PCI Express channel resources without occupying bus bandwidth.
LRES4006MT-POE uses a unique X-Code cross-shaped shield to isolate four communication signals to achieve signal integrity. At the same time, its ruggedness and durability make the modified product very suitable for harsh environments such as humidity, such as field monitoring, monitoring along railway lines, industrial production etc.
Complete technical details for integration and deployment planning.
| Bracket Height | Full Height |
|---|---|
| Power (min) | 3.792W |
| Power (max) | 6.672W |
| System Support | Windows 7、10、11 |
| Bus Type | PCIe v2. (5.0GT/s) x4; compatible with x8 x16 |
|---|---|
| Data rate per port | 10Mps/100Mbps/1Gbps |
| Connector | 4*1G M12 X-code |
| Power Supply | PCIe |
| Protocol Support | IEEE802.3at -2009 PoE standardIEEE802.3af -2003 PoE standardIEEE 802.3ab 1000BASE-T EthernetIEEE 802.3u 100BASE-TX EthernetIEEE 802.3az - Energy Efficient EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588 |
| PXE | Yes |
| DPDK | Yes |
| WoL | No |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| VMDq、SR-IOV | Yes |
| Jumbo DataFrame Max | 9.5KB |
| ESD_Contact discharge | ±8KV (Class A) |
| ESD_Air discharge | ±15KV (Class A) |
