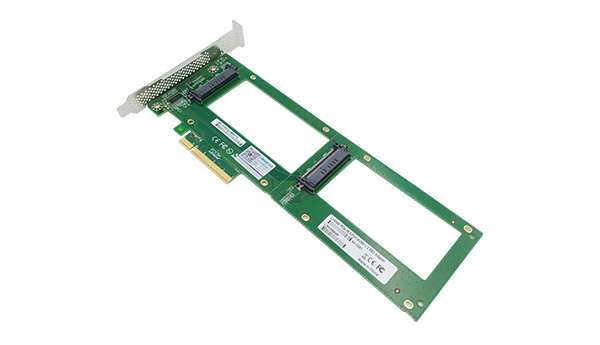

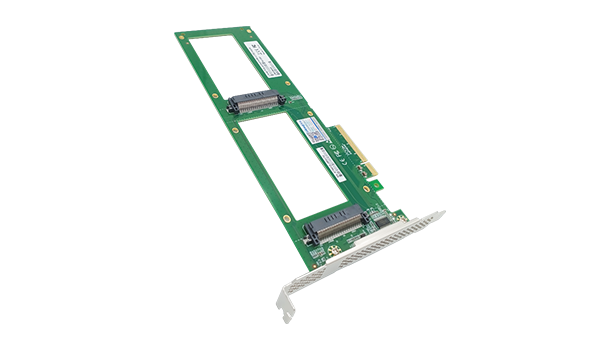

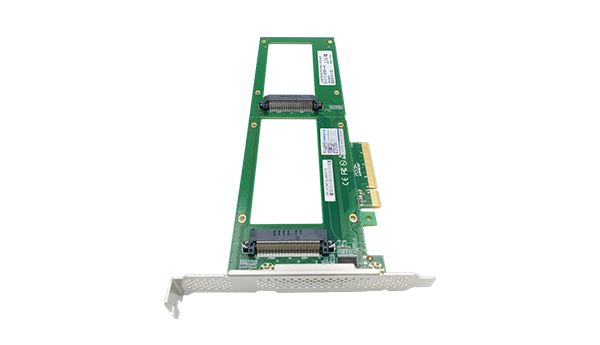

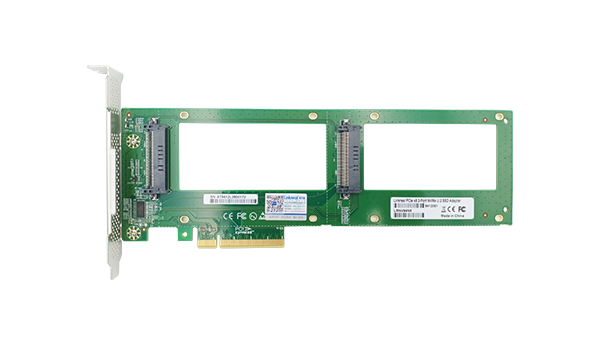

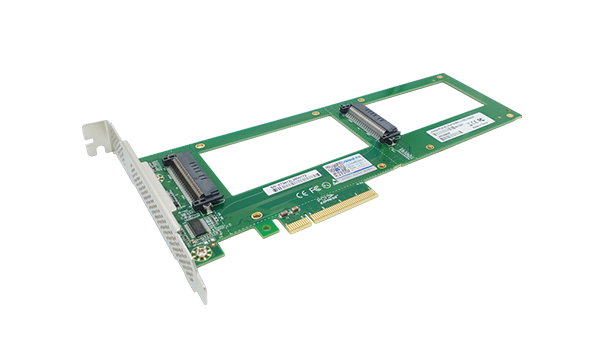

PCIe to NVMe, PCIe x8 to two NVMe SSD adapter card
Features:
1.Only supports motherboards with detachable PCI-E channels.Control the operation of two disks based on the motherboard PCIE channel,The motherboard without PCIE signal split can only recognize one disk.
2.U.2 SFF-8639 two-disks design, Stable installation, Can run two U.2 disks at full speed at the same time.
3.The 2.5" NVMe U.2 SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
4. No driver installation required, Support Windows 10/8, Server 2012 R2, Linux, etc.
5.Fully Rohs, FCC and CE Compliant.
Complete technical details for integration and deployment planning.
| Model | LRNV94N8 |
|---|---|
| Interface | PCI Express x8 |
| Compatible Drive | 2*U.2 (PCIe NVMe SSD, SFF-8639) |
| Drive Connector | 2*68-pin SFF-8639 interface connector |
|---|
| Humidity | 15% ~ 90% |
|---|---|
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Product Dimension | 236mm X83.23mm |
|---|---|
| Product Weight | 65g |
| Shipping Weight | 3.88oz [110 g] |
| Warranty | 3 Years |
|---|
| Included in Package | 1 - PCIe to 2*U.2 Adapter For 2.5" NVMe SSD |
|---|
